Semi Automatic Strapping Machines for Pallet Strapping

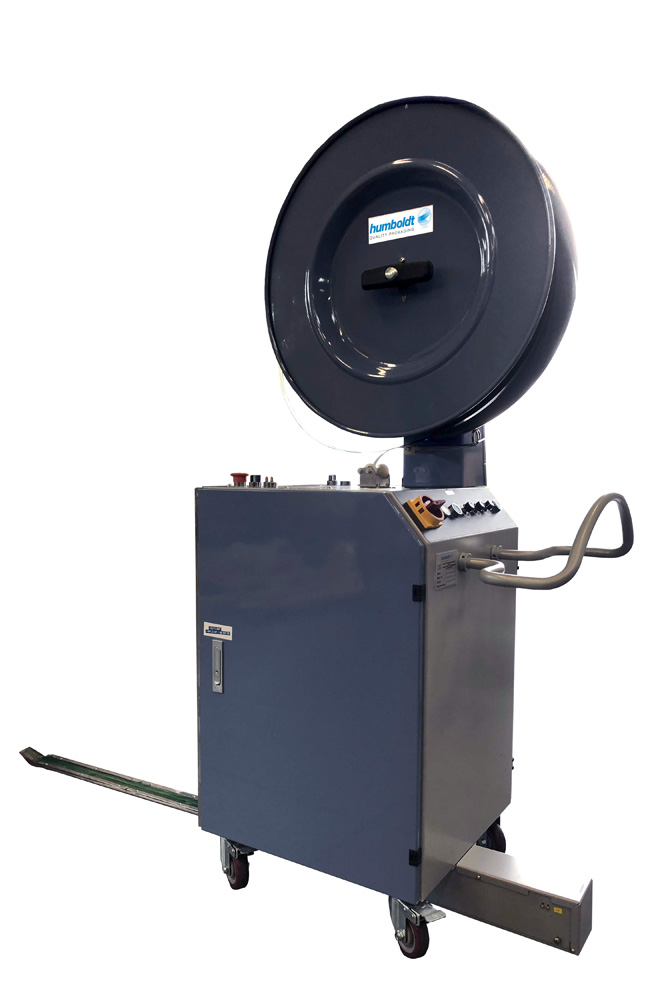

HU-310-PET

Semi-automatic pallet strapping machine, model HU-310-PET, with movable strap guide tongue. For the use of PET tape and PP tape in the dimensions of 9 mm to 19 mm wide, for strapping pallets of any size, shape and texture.

HU-310-PET

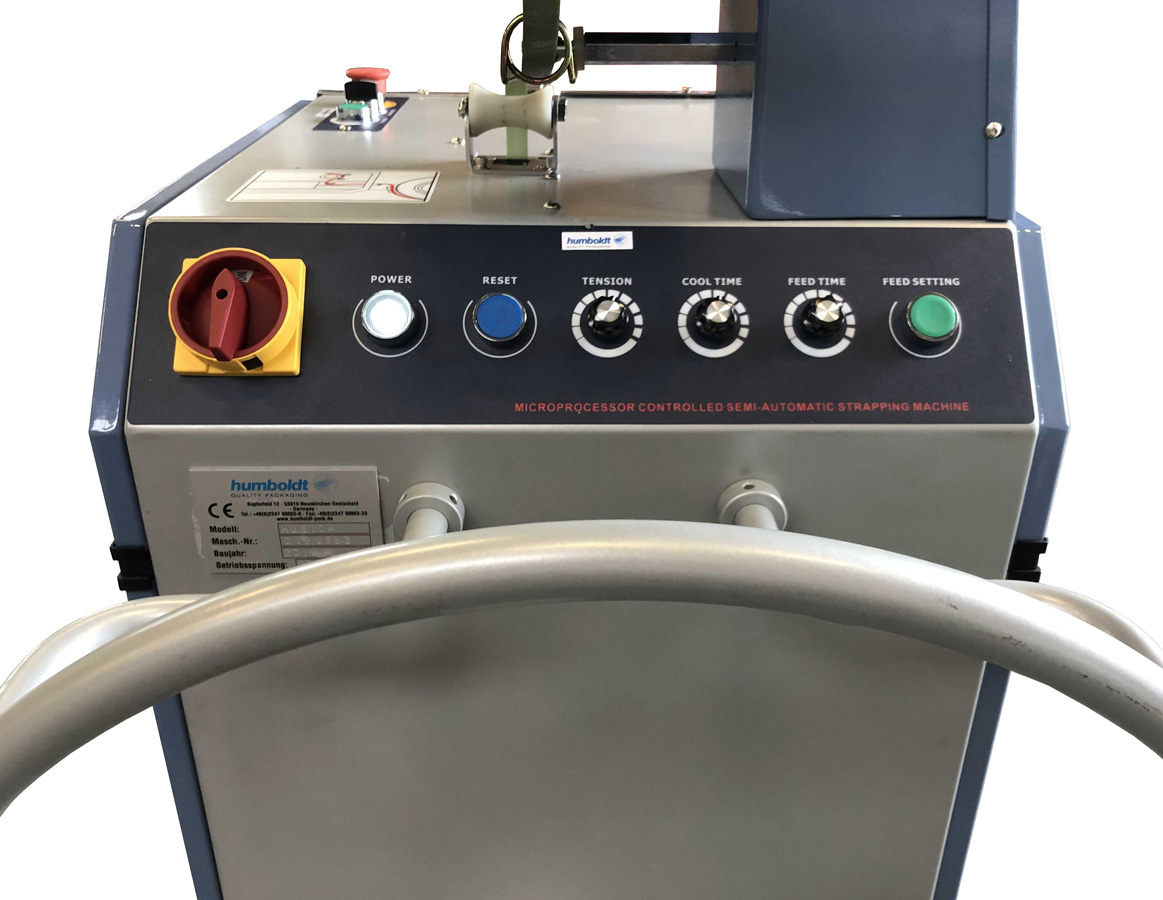

HU-310-PET Function Panel
  • Hot wedge closure
  • Compact design
  • Quick start: 60 sec.
  • Energy-saving design - the motor runs only during the strapping process
  • Movable, equipped with rollers, easy operation of the machine
  • External tape dispenser for rolls Quick change
  • Minimum product height 650 mm
  • Emergency switch
  • Machine CE-compliant



Capacity:
Dependent on operator

Strap width:
9, 10, 12, 12.7, 15.5, 16 and 19 mm
Strap tension:
5 - 150 kg

Package-size:
width and length: unlimited
height: at least 650 mm
Elektric:230 V, 1 Ph., 50 Hz, 0.6 kW

Machine dimension:
1,147 x 662 x 1,523 mm (LxWxH)
Weight:140 kg
Lance length:700 mm
Colour:black

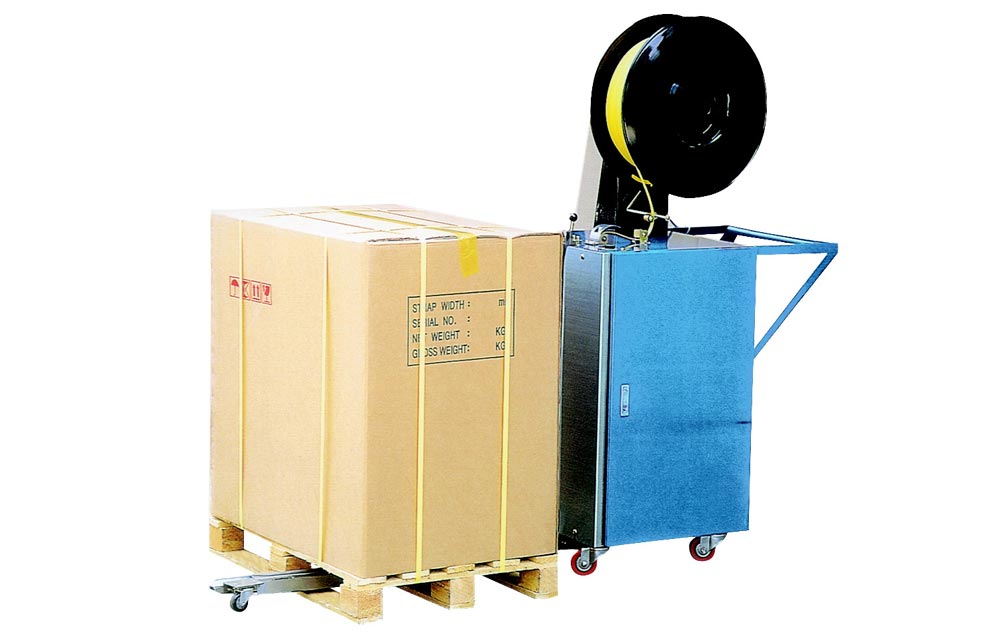

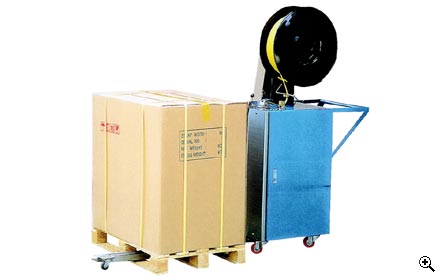

HU-310

Semi automatic strapping machine with fixed bayonet

HU-310
Capacity:
Dependent on operator
Strap width:
12 or 15 mm
Strap tension:
max. 100 kg
Table working height:
min. 500 mm
Elektric:230 V, 1 Ph., 50 Hz
Machine dimension:
1,800 x 524 x 1,500 mm (LxWxH)
  Video

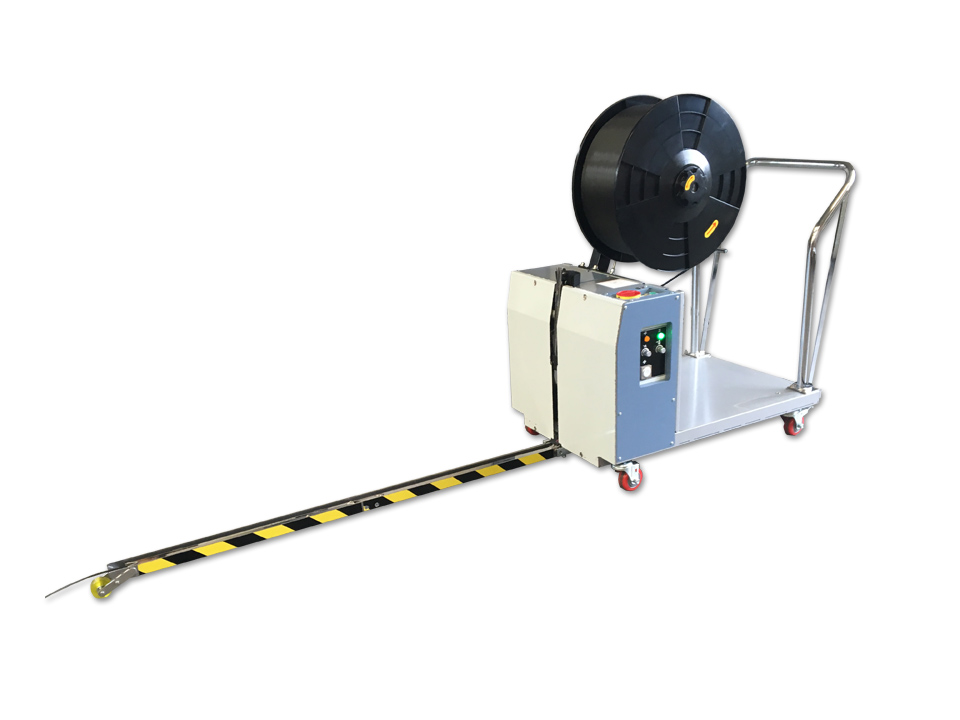

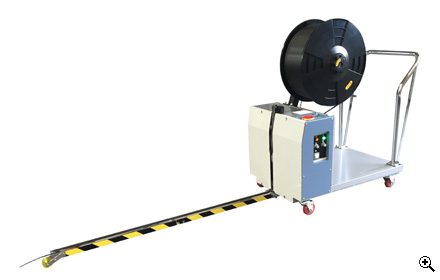

HU-350


Semi automatic strapping machine with bayonet (foldout)



HU-350 battery version:


HU-350
Capacity:
Dependent on operator
Strap width:
9, 10, 12, 12.7, 15 mm
Strap thickness:0.5 - 1.0 mm
Strap tension:
8 - 70 kg
Bayonet length:1,300 mm
Package dimensions:
Length, width, height unlimited
Drive motor:230 V, 1 Ph., 50 Hz, 0.33 kW
Machine dimension:
2,315 x 5585 x 1,074 mm (LxWxH)
Weight:93 kg
Option:Battery operation
  Video

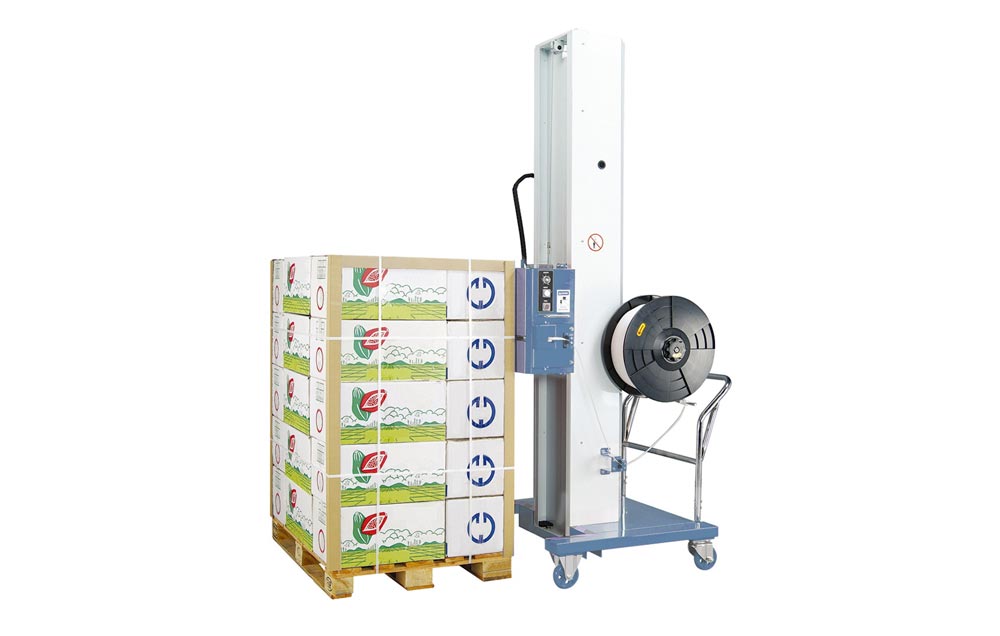

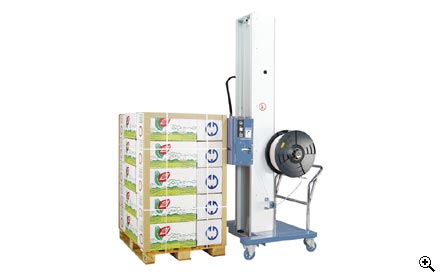

HU-340

Semi automatic strapping machine for variable horizontal strapping

HU-340
Capacity:
8, 9, 10, 12, 15,5 mm
Table working height:
variable
Product height:min. 500 mm
Machine dimension:
850 x 560 x 780 - 950 mm (LxWxH)
