Flexible skate wheel conveyor

HUMBOLDT-Flexible skate wheel conveyor
with steel or plastic balls
  • variable in conveying length (extendable)
  • adjustable in height (700-1,100 mm)
  • mobile through castors with brakes
  • flexible wheel conveyors offer a high directional stability for the running of the conveyed material
  • its high flexibility enables routing as curves or S-curves
  • frame, slidable lattice grate, galvanized
  • steel rolls, galvanized, diameter 48 mm
  • plastic rolls, diameter 48 mm
  • axial distance, about 32-130 mm, depending on the length being extracted
  • struts adjustable via telescopic plugs, mobile with castors, 100 mm diameter with brake
  • flexible conveyors are independent, flexible conveyor lines
Specification
Web width:
300 - 1,000 mm
Rolls per axle:3 - 10
Number of strurts:3 - 6
Number of axels:36, 78
Number of flexible elements:2 - 4
Extendible:1,2 - 9,6 m
Capacity between 2 struts per meter:
100 - 120 kg
Execution:
Steel or plactic balls
Options
Stop fixed
Stop foldable
Connector between two paths

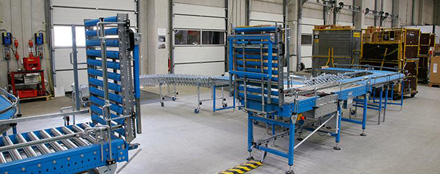

Scheren-Röllchenbahn
Scheren-Röllchenbahn
Scheren-Röllchenbahn
