Semi Automatic Wrapping Machines

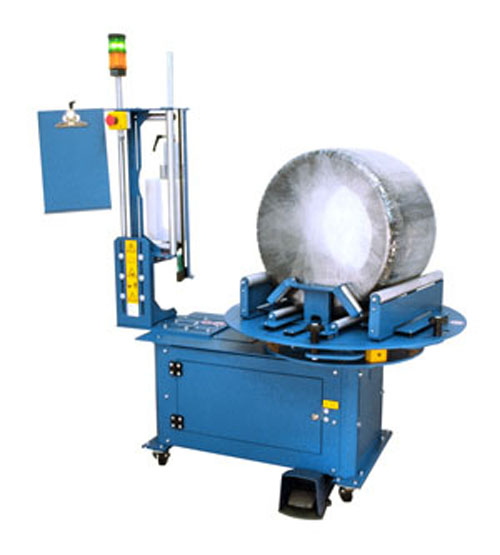

HU-100

Semi automatic wrapping machine for types of round products

HU-100
Film carriage:
MBB
Capacity:
25-30 units per hour
Elektric:230 V, 1 Ph., 50 Hz
Dimension:1,700 x 1,150 x 760 mm (LxWxH)
  Video

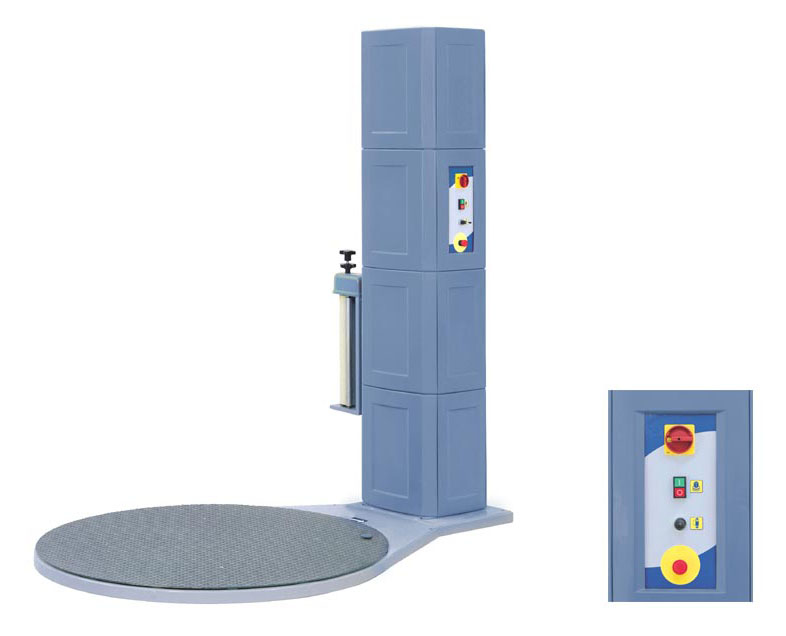

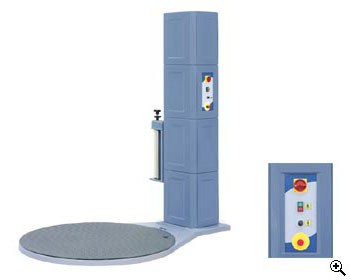

HU-1010

Semi automatic wrapping machine



HU-1010
Machine specification
Capacity:
approx 20 pallets per hour
Turntable diameter:1,500 mm
Lifting carriage speed:1.4 - 4 m / min
Elektric:230 V, 1 Ph., 50 Hz
Connected load:0.70 kW
Product specification
Maximum dimension (LxW):
1,000 x 1,200 mm
Maximum wrapping height:
2,100 mm
Maximum load weight:
1,200 kg
Foil specification
Maximum roll diameter:
240 mm
Foil reel height:
500 mm
Film thickness:
12 - 35 µm
Inner diameter of the roll core:
76 mm
Maximum roll weight:
17 kg

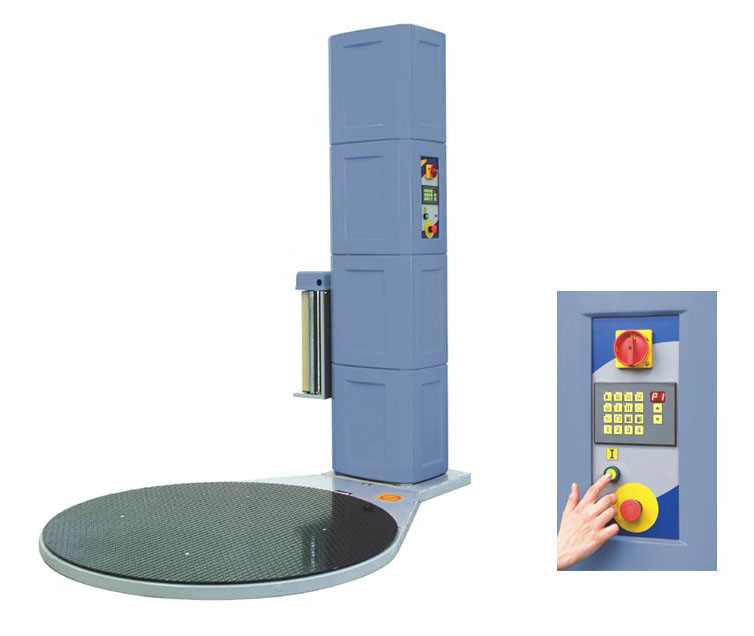

HU-2000

Semi automatic wrapping machine with photocell for product and height detection



HU-2000
Film carriage:
MBB, EMB, IDP + EPI
Capacity:
30-40 pallets per hour
Turntable diameter:

1,500 mm
Option: 1,650, 1,800, 2,200 mm
Max. pallet dimension:
1,200 x 1,000 x 2,100 mm (LxWxH),
1,200 kg
Elektric:230 V, 1 Ph., 50 Hz
Dimension:
2,270 x 1,520 x 2,320 mm (LxWxH)
> Download data sheet        Video

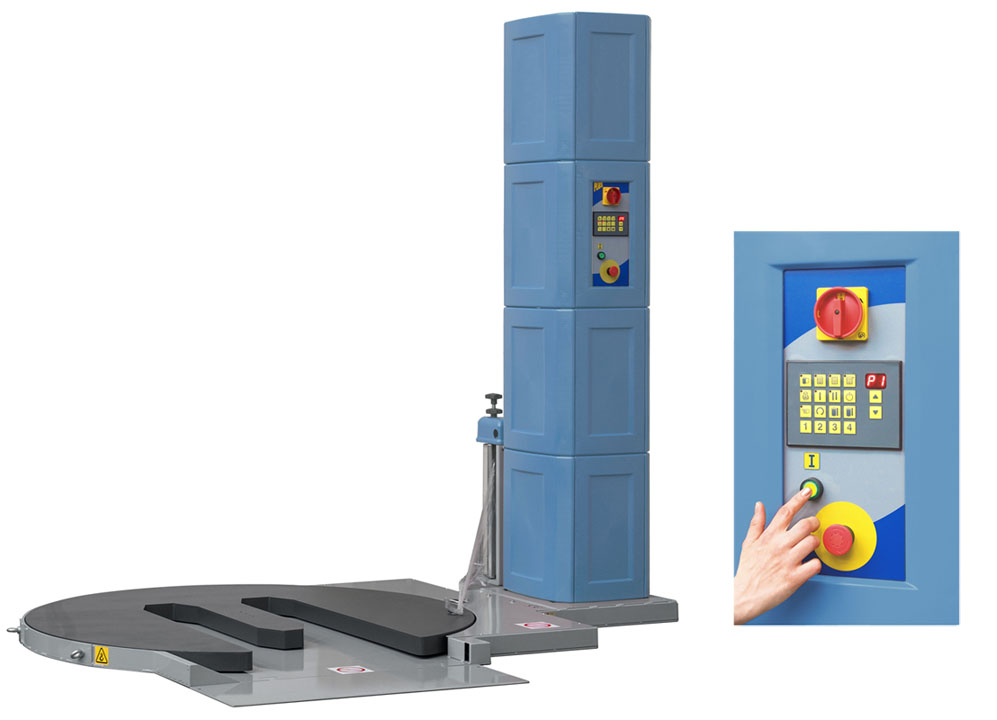

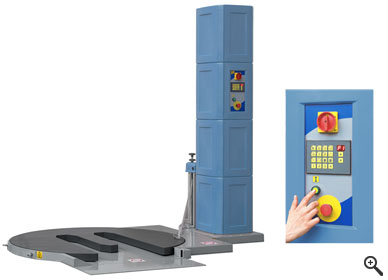

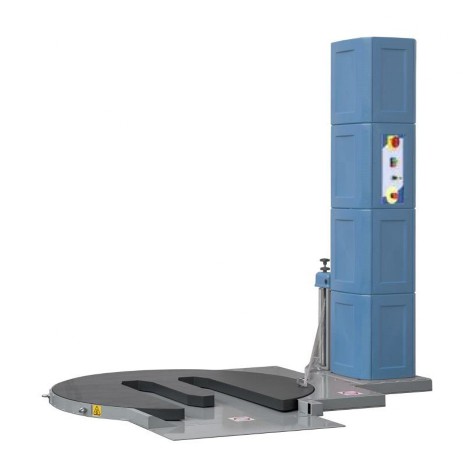

HU-2001

Semi automatic wrapping machine with photocell and transpullet turntable for easy loading



HU-2001
Film carriage:
MBB, EMB, IDP + EPI
Capacity:
30-40 pallets per hour
Turntable diameter:
1,650 mm
Option: 1,800 mm
Max. pallet dimension:
1,200 x 1,000 x 2,100 mm (LxWxH),
1,200 kg
Elektric:230 V, 1 Ph., 50 Hz
Dimension:
2,658 x 1,650 x 2,627 mm (LxWxH)
  Video

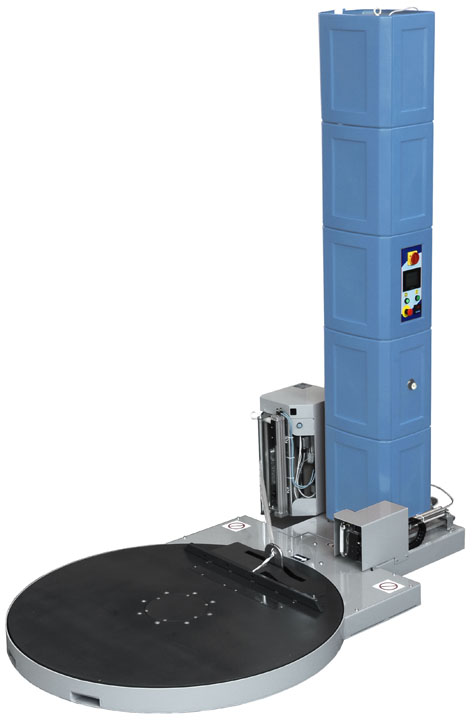

HU-5000

Automatic premium wrapping machine with automatic filmclamp and sealing system
HU-5000
Film carriage:
IDP + EPI
Capacity:
30-40 pallets per hour
Sting-System:Film compressed in coard last 2 wrappings, incl. heat seal film device
Turntable diameter:
1,650 mm
Option: 1,800 mm
Max. pallet dimension:
1,200 x 1,000 x 2,500 mm (LxWxH),
2,000 kg
Elektric:400 V, 3 Ph., 50 Hz
Dimension:
2,690 x 1,650 x 2,940 mm (LxWxH)
> Download data sheet       Video

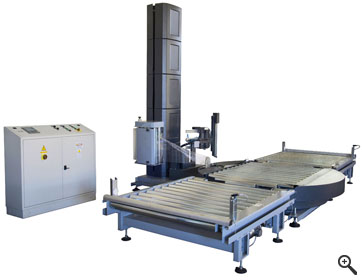

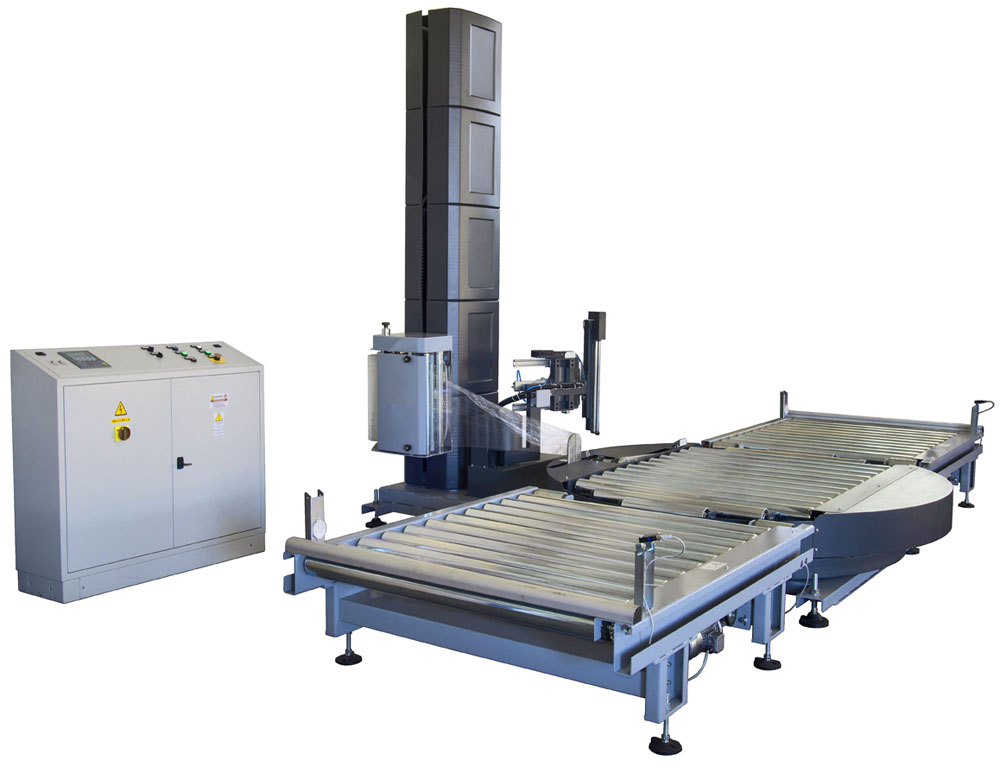

HUD-2040-A

Fully automatic turntable wrapping machine

HUD-2040-A
Film carriage:
IDP + EPI
Capacity:
40 - 50 pallets per hour
Turntable diameter:
1,750 mm
Max. pallet dimension:
1,300 x 1,100 x 2.500 mm (LxWxH),
2,000 kg
Elektric:400 V, 3 Ph., 50 Hz
