Taping Machines

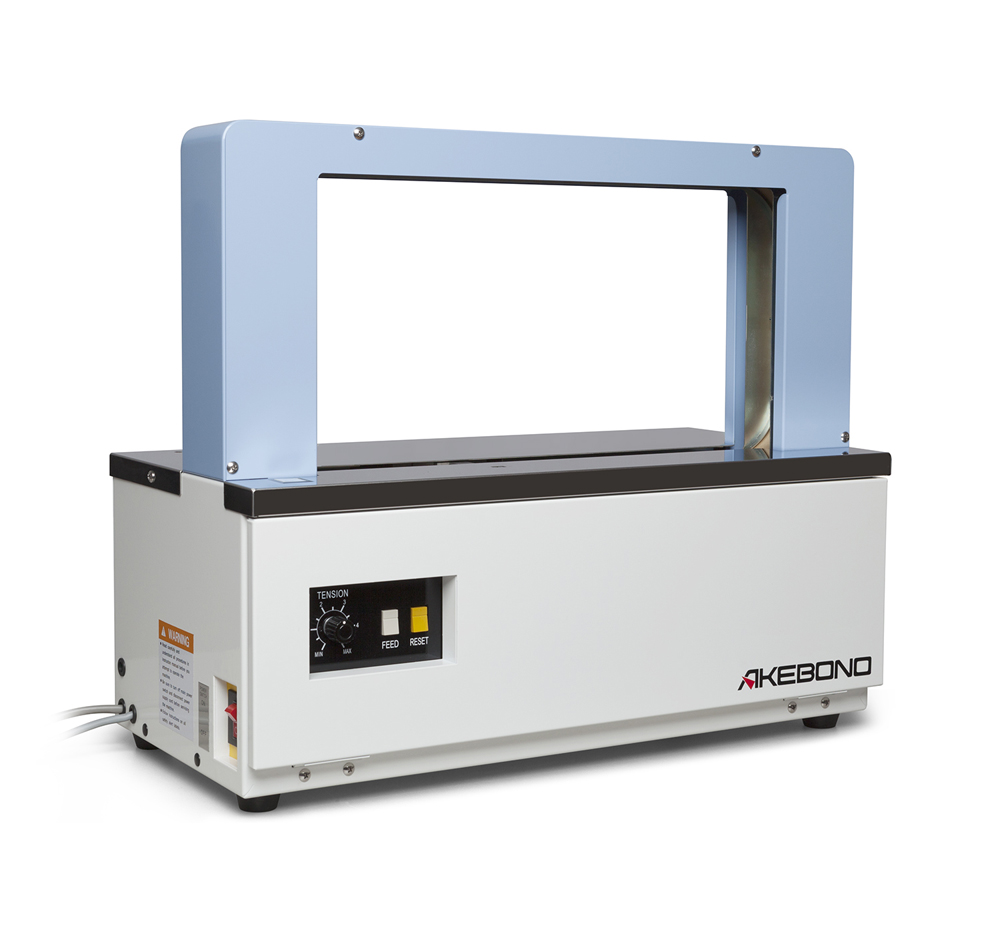

OB-360N

Automatic taping machine OB-360N. This device is suitable for processing by power PE coated or sealable film with a width of 29 mm.

OB-360N
Strap width:
29 /30 mm
Strap tension:
0,5 - 3 kg stufenlos
Electric:230 V, 1 Ph., 50 Hz; 0.106 kW
Machine dimension:
570 x 282 x 488 mm (LxWxH)
Arch size:
420 x 210 mm (WxH)*

*Other dimension on request

  Video


Characteristics:
  • stepless strap tension
  • paper or foil tape (without machine conversion)
  • operation: fully automatic (indication switch)
  • foot or hand switch
  • small closure head for optimal belt tension even for small products
  • control of product position at start tripping
  • control of product position in the band retreat
  • automatic second tape shot if first failed
  • very low noise through damper system
  • wear-resistant belt guidance unit
  • the welding takes place over the entire material width

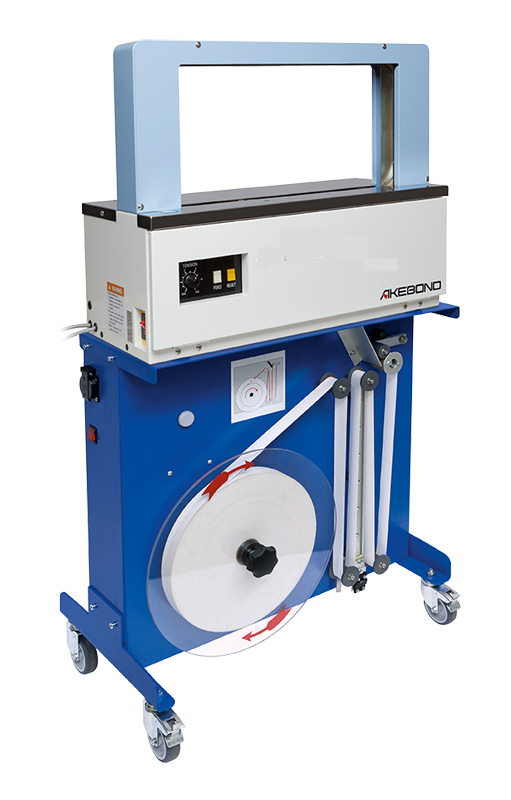

OB-360N with base frame LD-1000 for 1.000 m rolls

Automatic taping machine OB-360N + LD-1000. This device is suitable for processing by power PE coated or sealable film with a width of 29 mm.


OB-360N mit Untergestell LD-1000
OB-360N + LD-1000
Strap width:
29 /30 mm
Strap tension:
0,5 - 3 kg, stepless
Electric:230 V, 1 Ph., 50 Hz; 0.106 kW
Machine dimension:
780 x 282 x 978 mm (LxWxH)
Arch size:
420 x 210 mm (WxH)
Material: paper tape / film tape
Colour:
brown / paper / transparent / printed
other colours on request
Width:
29 /30 mm
Length:800, 1,000, or 1,200 m
Bandeerolierbeispiele
  • stepless strap tension
  • paper or foil tape (without machine conversion)
  • operation: fully automatic (indication switch)
  • foot or hand switch
  • small closure head for optimal belt tension even for small products
  • control of product position at start tripping
  • control of product position in the band retreat
  • automatic second tape shot if first failed
  • very low noise through damper system
  • wear-resistant belt guidance unit
  • the welding takes place over the entire material width
  • LD -1000 tape storage movable, for the use of large rolls
  • ideal for high performance
