Horizontal Wrapping Machines

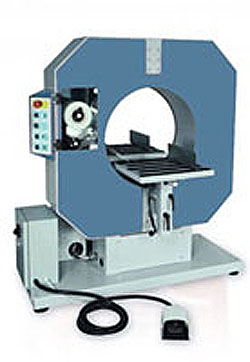

HUE-6M


Semi-automatic horizontal wrapping machine for packaging with stretch film
HUE-6M
Machine specification
Ring diameter
600 mm
Ring speed
120 rpm.
Power connection
230 V, 1Ph, 50 Hz
Connected load
0.75 kW
Power consumption
approx. 0.26 kW
Air pressure
6 bar
Air consumption
1.8 Nl per cycle
Working height
800 - 890 mm
Machine dimensions
1,400 x 1,010 x 1,550 mm
Weight
450 kg
Foil specification
Foil width
125 mm
Foil thickness
20, 23 or 30 µ
Core holder
76 mm
Roll diameter
200 mm
Properties:

  • For packaging long products such as profiles, tubes, rods, roller shutters etc. with stretch film
  • Semi-automatic workflow
  • Automatic film application and automatic film separation
  • Start by foot switch
  • PLC control
  • Variably adjustable ring speed
  • Variably adjustable film tension
  • The wrapping ring always stops in the same position
  • Precise stop function for easy material changes
  • Easy to integrate into existing conveyor technology
  • Conveyor technology (option)
  • Emergency switch
  • All parts CE - conform

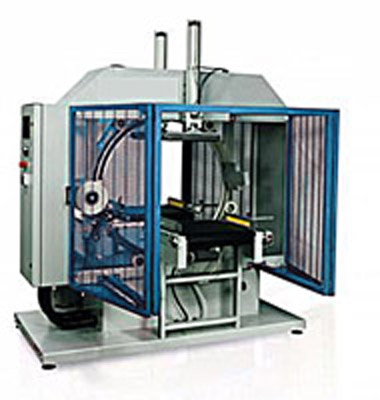

HUE-6A


Fully-automatic horizontal wrapping machine for packaging with stretch film

HUE-6A
Machine spezification
Ring diameter
600 mm
Ring speed
120 rpm.
Power connection
230 V, 1Ph, 50 Hz
Connected load
0.75 kW
Power consumption
approx. 0.26 kW
Air pressure
6 bar
Air consumption
9.4 Nl per cycle
Working height
800 - 890 mm
Machine dimensions
1,400 x 1,010 x 1,550 mm
Weight
480 kg
Foil spezification
Foil width
125 mm
Foil thickness
20, 23 or 30 µ
Core holder
76 mm
Roll diameter
200 mm

Properties:

  • For packaging long products such as profiles, tubes, rods, roller shutters etc. with stretch film
  • Semi-automatic workflow
  • Automatic film application and automatic film separation
  • Start by foot switch
  • PLC control
  • Variably adjustable ring speed
  • Variably adjustable film tension
  • The wrapping ring always stops in the same position
  • Precise stop function for easy material changes
  • Easy to integrate into existing conveyor technology
  • Conveyor technology (option)
  • Security cover
  • Emergency switch
  • All parts CE - conform
