Tube Shrinking

Semi-automatic L-Sealing Hood Packaging-Machine, the demand for low-cost, simple and quick solutions for pack small and medium-sized products, advised film quality, PP, PVC, Polyethylen, Polyolefin, etc.

  • sealing and Shrinking in one operation
  • teflon-coated sealing blade
  • automatic hood release
  • height adjustment of the internal packaging platee
  • alphanumeric LCD control panel with microprocessor card
  • adjustement of the sealing temperature
  • reduced power consumption
  • according CE regulation

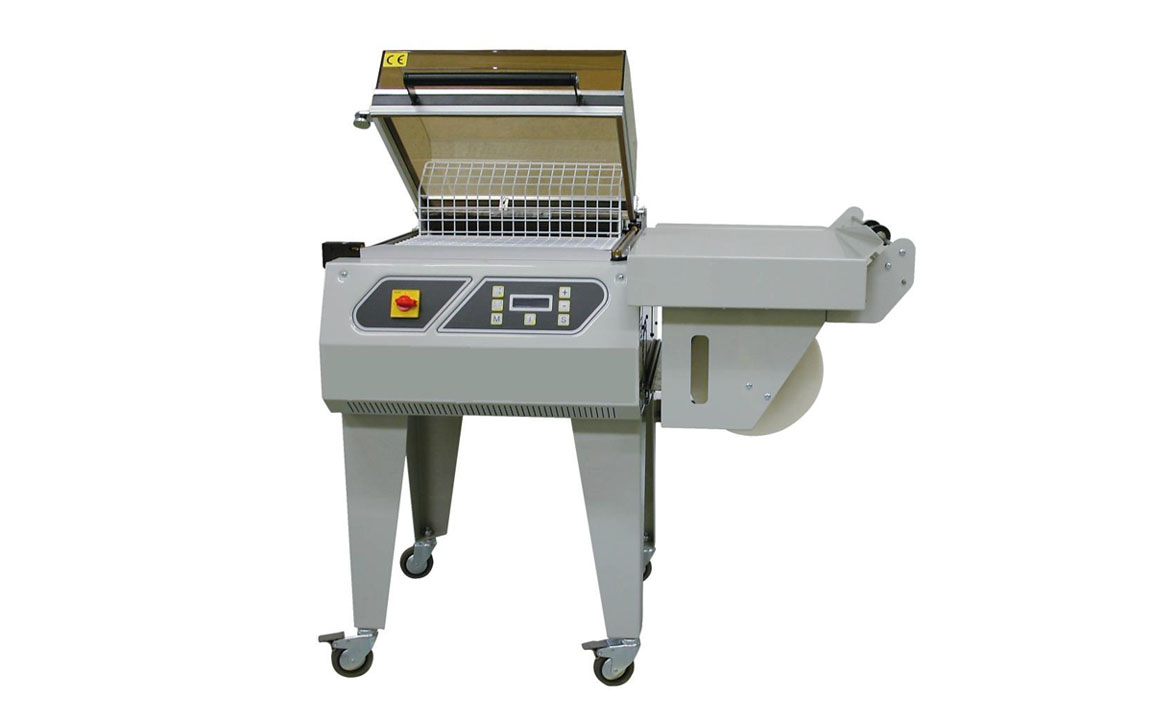

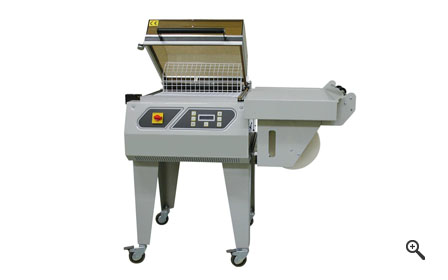

HU-FP-10


Shrink wrapping machine, Model HU-FP- 10, version with L-sealers and shrink wrap on mobile base frame.

HU-FP-10
Machine-Specification
Sealing bar:
440 x 300 (LxB)
Max. product height:210 mm
Elektric:240 V, 1 Ph., 50 Hz
Installed power:1.650 W
Dimension:1,050 x 682 x 1,015 mm (L x W x H)
Capacity:
80 - 140 products/h
Weight:105 kg
  • welding and shrinking in one operation
  • microprocessor control 16 Bit
  • operating display
  • shrink hood holding magnet - automatic release of the hood
  • compact and robust design
  • working height adjustable
  • electronic control of the sealing temperature
  • electronic control of shrink time
  • electronic control of the temperature in the shrink hood
  • low energy consumption
  • simple and precise control of all operations, for example, machine status,
       sealing temperature, shrink time, etc., reporting of possible malfunctions
       on LCD control panel
  • movable machine with castors (with parking brake)
  • machine is CE-compliant
Film Tube - Specification
Width:
400 mm
Diameter:
300 mm
Thickness:15 µ

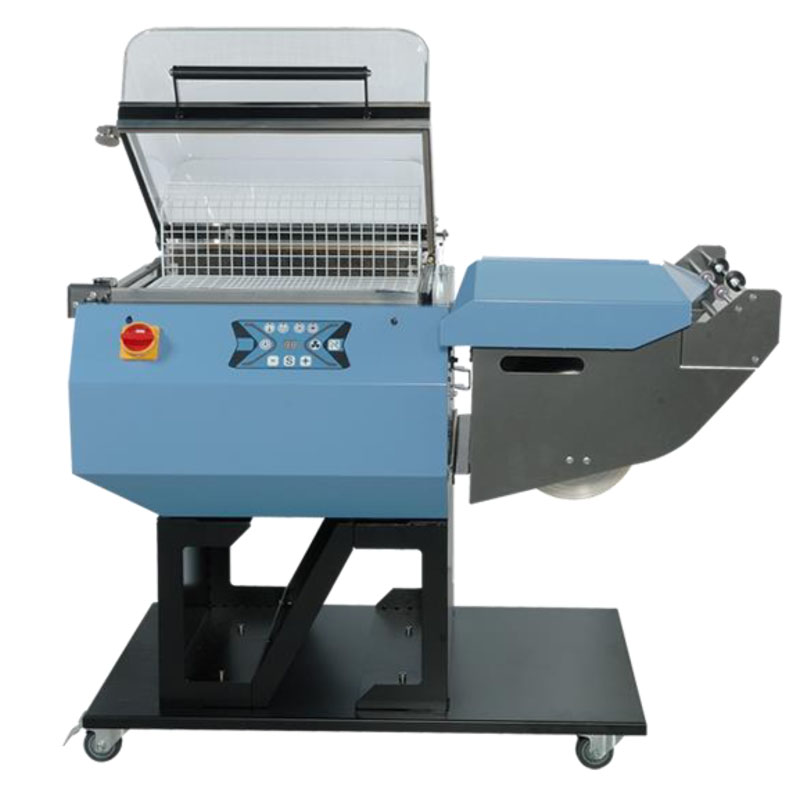

HU-FP-15 Premium

Premium shrink wrapping machine, version with L-sealers and shrink wrap on mobile baseframe.


HU-FP-15 Premium
Machine-Specification
Sealing bar:
500 x 340 (LxB)
Max. product height:210 mm
Elektric:230 V, 1 Ph., 50 Hz
Installed power:3.2 kW
Dimension:1055 x 682 x 1,015 mm (L x W x H)
Capacity:
150 products/h
Weight:99 kg
  • touch screen display
  • welding and shrinking in one operation
  • shrink hood holding magnet - automatic release of the hood
  • compact and robust design
  • welding temperature, shrinking time, etc., the message of possible faults on LCD control panel
  • electronic control of the sealing temperature
  • electronic control of shrink time
  • electronic control of the temperature in the shrink hood
  • low energy consumption
  • simple and precise control of all operations, for example, machine status, sealing temperature, shrink time, etc., reporting of possible malfunctions on LCD controlpanel
  • movable machine with castors (with parking brake)
  • machine is CE-compliant

  Video

Film Tube - Specification
Width:
400 mm
Diameter:
250 mm
Thickness:15 µ,17 µ, 20 µ

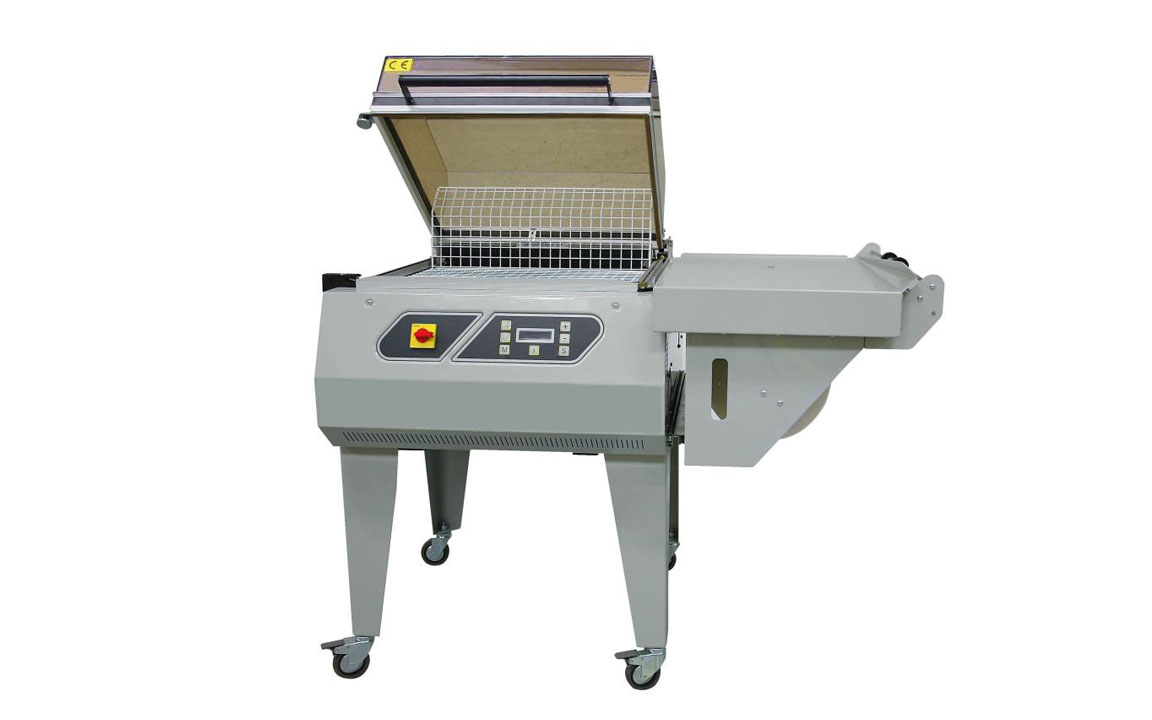

HU-FP-20

Shrink wrapping machine, Model HU-FP- 20, version with L-sealers and shrink wrap on mobile baseframe.


HU-FP-20
Machine-Specification
Sealing bar:
560 x 430 (LxB)
Max. product height:260 mm
Elektric:240 V, 1 Ph., 50 Hz
Installed power:3.75 kW
Dimension:1,240 x 815 x 1,100 mm (L x W x H)
Capacity:
80 - 140 products/h
Weight:105 kg
  • welding and shrinking in one operation
  • microprocessor control 16 Bit
  • operating display
  • shrink hood holding magnet - automatic release of the hood
  • compact and robust design
  • working height adjustable
  • electronic control of the sealing temperature
  • electronic control of shrink time
  • electronic control of the temperature in the shrink hood
  • low energy consumption
  • simple and precise control of all operations, for example, machine status,
       sealing temperature, shrink time, etc., reporting of possible malfunctions
       on LCD control panel
  • movable machine with castors (with parking brake)
  • machine is CE-compliant
Film Tube - Specification
Width:
600 mm
Diameter:
300 mm
Thickness:15 µ

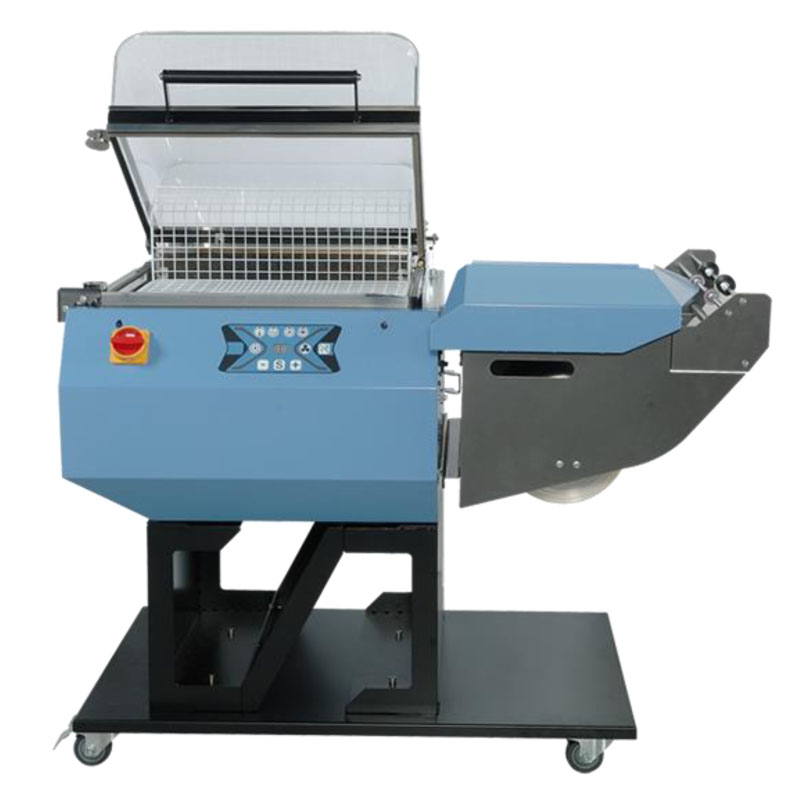

HU-FP-25 Premium

Premium shrink wrapping machine, version with L-sealers and shrink wrap on mobile baseframe.


HU-FP-25 Premium
Machine-Specification
Sealing bar:
550 x 415 (LxB)
Max. product height:300 mm
Elektric:240 V, 1 Ph., 50 Hz
Installed power:3.77 kW
Dimension:1060 x 682 x 1,015 mm (L x W x H)
Capacity:
150 products/h
Weight:151 kg
  • touch screen display
  • welding and shrinking in one operation
  • shrink hood holding magnet - automatic release of the hood
  • compact and robust design
  • welding temperature, shrinking time, etc., the message of possible faults on LCD control panel
  • electronic control of the sealing temperature
  • electronic control of shrink time
  • electronic control of the temperature in the shrink hood
  • low energy consumption
  • simple and precise control of all operations, for example, machine status, sealing temperature, shrink time, etc., reporting of possible malfunctions on LCD controlpanel
  • movable machine with castors (with parking brake)
  • machine is CE-compliant



Film Tube - Specification
Width:
600 mm
Diameter:
250 mm
Thickness:15 µ,17 µ, 20 µ

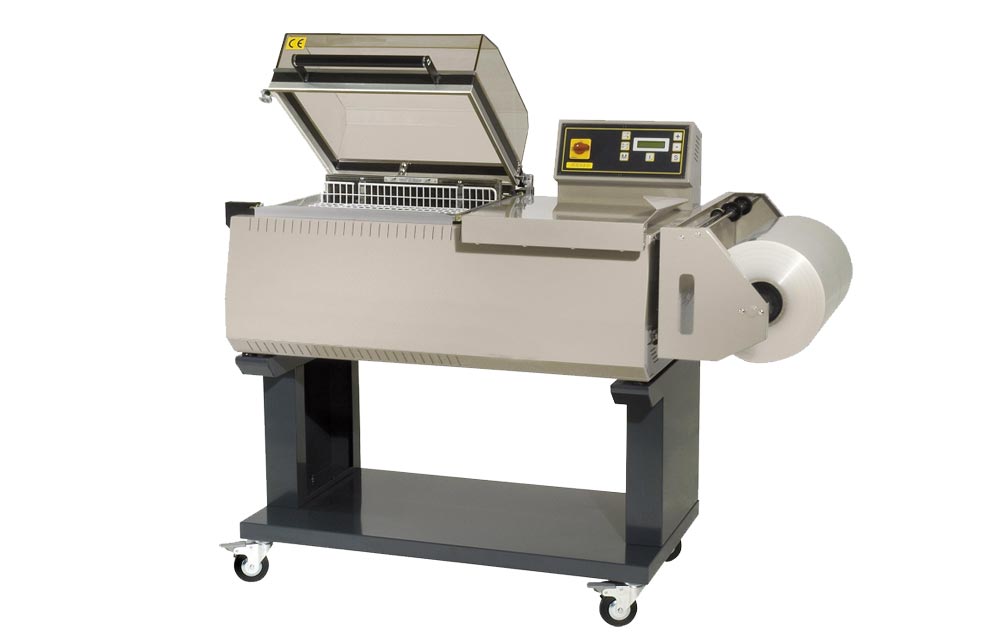

HU-FP-40


HU-FP-40
Further SE-Models available:




Machine - Specifications
Sealing bar:
440 x 300 (LxB)
Film width:
300 mm
Max. product height:210 mm
Elektric:230 V, 1 Ph., 50 Hz
Installed power:2,300 W
Dimenssion:1,230 x 680 x 1,030 mm (L x W x H)
Capacity:
ca. 200 products/h
Type
Sealing bar -DimensionFilm width
Capacity

Product Height
HU-FP-40
560 x 430 mm600 mm
200 cycles/hour 260 mm
560 x 430 mm600 mm
300 cycles/hour
260 mm
560 x 430 mm 600 mm
400 cycles/hour
260 mm
870 x 620 mm800 mm
200 cycles/hour
310 mm

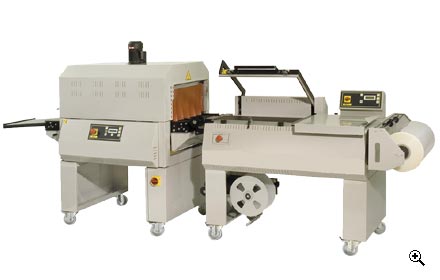

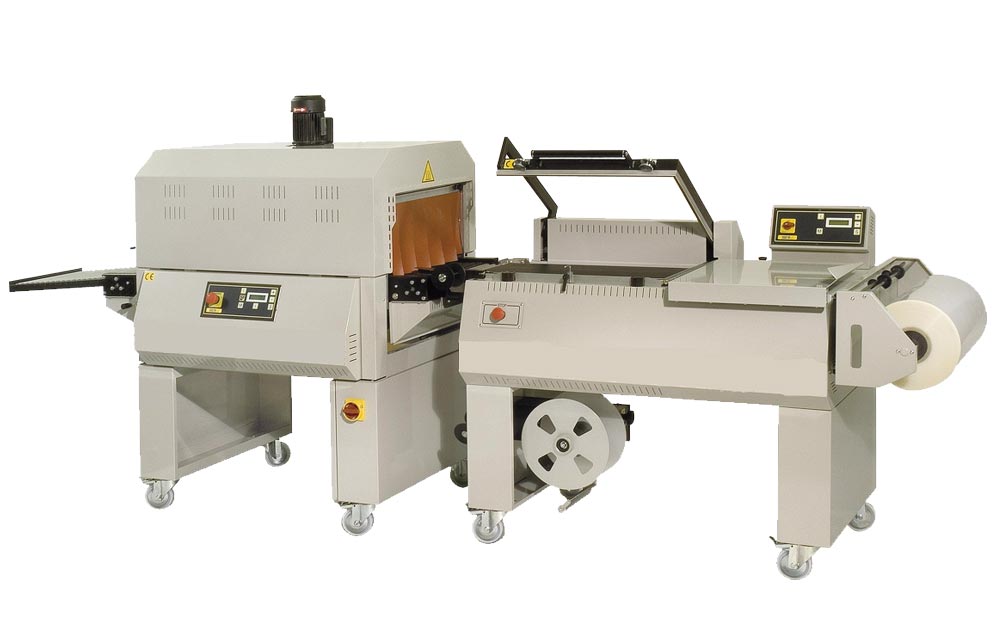

HU-FP-60

Modular L-sealers with shrink tunnel for high capacity.
Further models with bigger sealing bar available.

HU-FP-60
Specifications
Sealing bar:
560 x 430 (LxB)
Film width:
600 mm
Max. product height:230 mm
Elektric:230 V, 1 Ph., 50 Hz
Installed power:2,450 W
Dimension:2,020 x 790 x 1,055 mm (L x W x H)
Capacity:
ca. 600 products/h
