Semi Automatic Strapping Machines

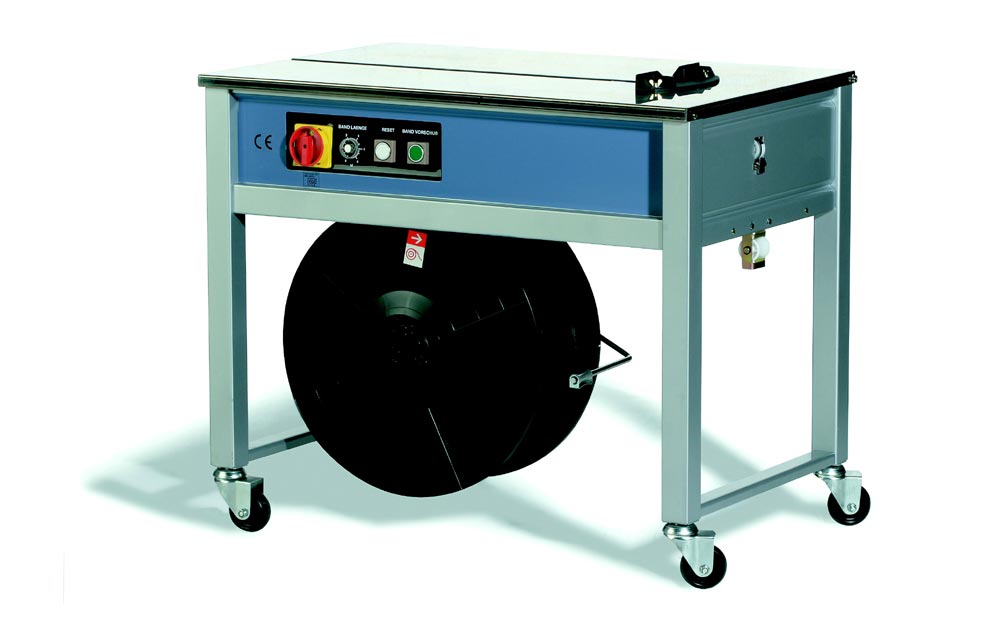

HU-535

Semi automatic strapping machine

HU-535
Capacity:
2,17 sec. per strapping
Strap width:
6, 8, 9, 10, 12, 15,5 mm
Strap tension:3 - 45 kg
Table working height:770 mm
Electric:230 V, 1 Ph., 50 Hz
Machine dimension:582 x 910 x 770 mm (LxWxH)
  Video

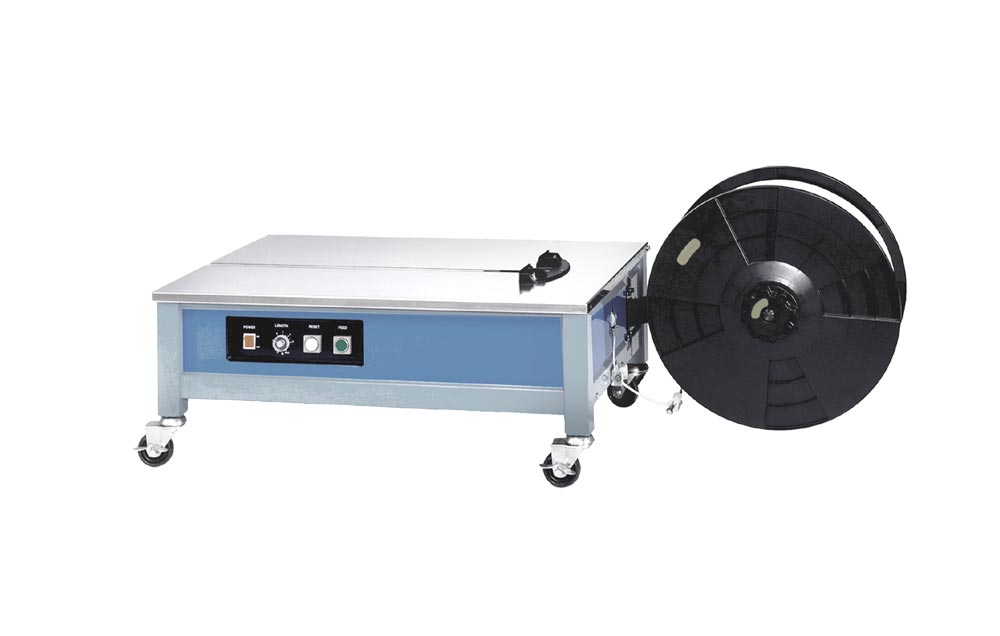

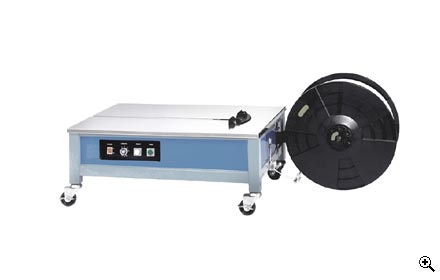

HU-535-L

Semi automatic strapping machine

HU-535-L
Capacity:
2,17 sec. per strapping
Strap width:
6, 8, 9, 10, 12 mm
Strap tension:
3 - 45 kg
Table working height:
372 mm
Elektric:230 V, 1 Ph., 50 Hz
Machine dimension:
582 x 910 x 450 mm (LxBxH)

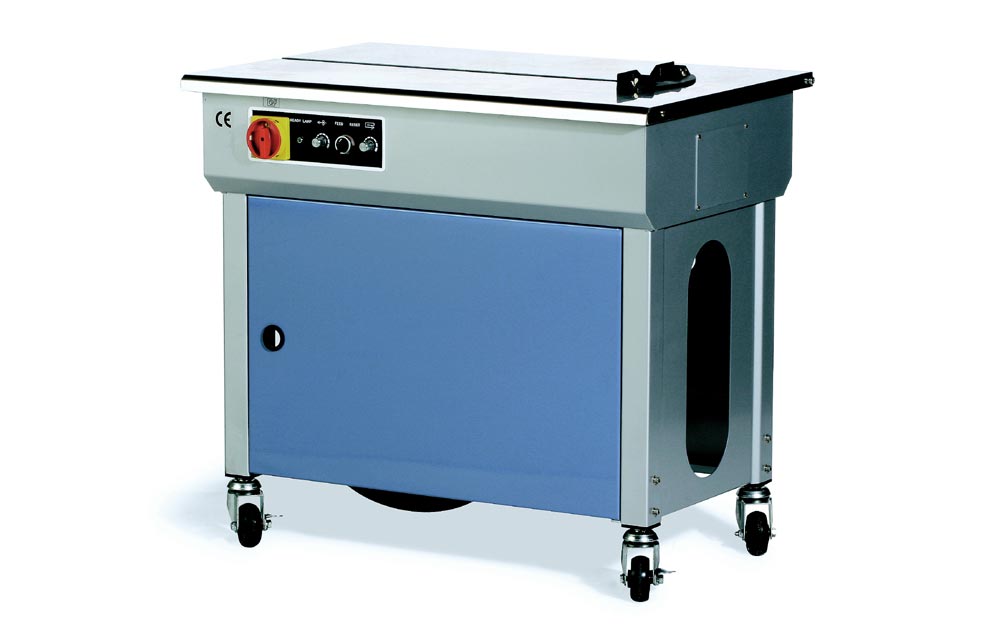

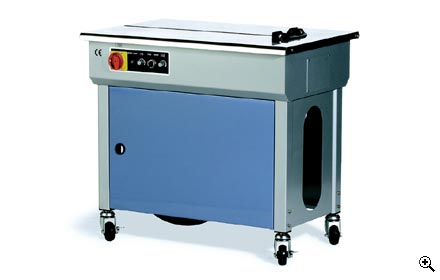

HU-545

Semi automatic strapping machine

HU-545
Capacity:
24 per min.
Strap width:
5, 6, 8, 9, 10, 12, 13 mm
Strap tension:
3 - 45 kg
Table working height:
780 - 950 mm
Elektric:230 V, 1 Ph., 50 Hz, 0,5 Kw
Machine dimension:
850 x 560 x 780 - 950 mm (LxWxH)
 Video

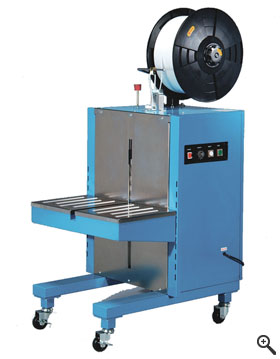

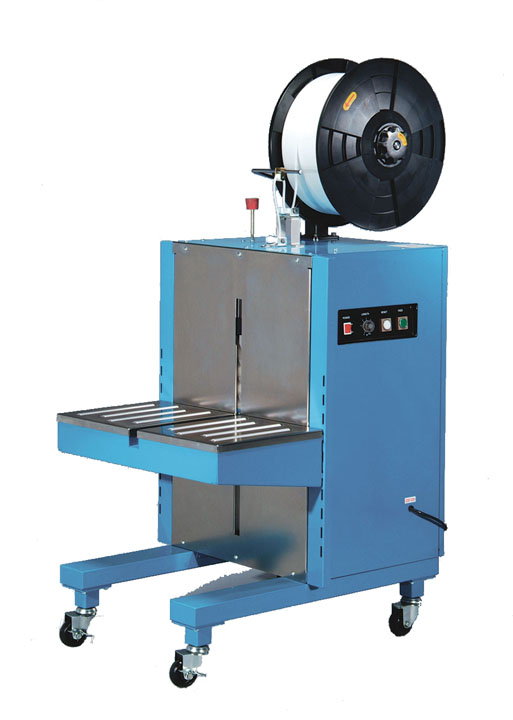

HU-545-S

Semi automatic strapping machine

HU-545-S
Capacity:
24 per min.
Strap width:
5, 6, 8, 9, 10, 12, 13, 15,5 mm
Strap tension:
3 - 45 kg
Table working height:
420 - 900 mm
Elektric:230 V, 1 Ph., 50 Hz
Machine dimension:
1.300 x 850 x 1.500 mm (LxWxH)
