Fully Automatic Strapping Machines

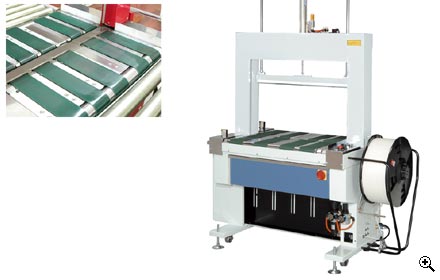

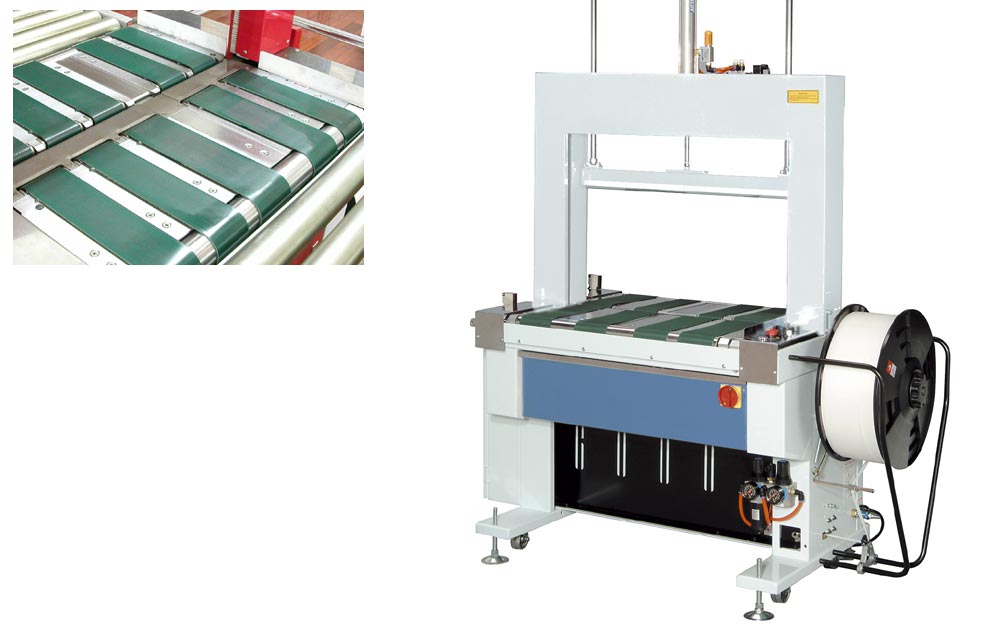

HU-601-A

Fully automatic strapping machine


HU-601-A
Capacity:
28 per min.
Strap width:
9,12, 15,5 mm
Strap tension:
2,5 - 70 kg
Table working height:
810 mm
Elektric:400 V, 3 Ph., 50 Hz
Machine dimension:
1580 x 706 x 1.540 mm (LxWxH)
Arch size:
850 x 600 mm (WxH)*
* Other dimension for request


 Video

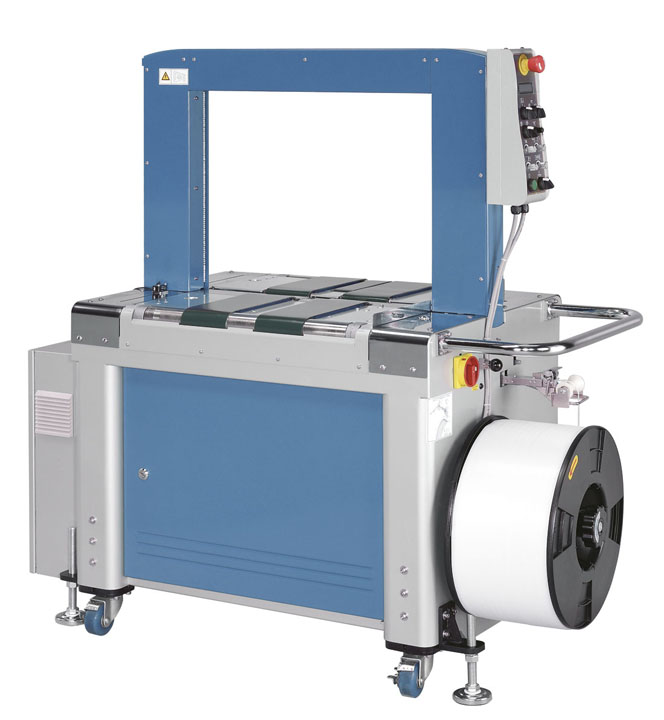

HU-702-A

Fully automatic strapping machine

HU-702-A
Capacity:
40 per min.
Strap width:
5, 6, 9, 12 mm
Strap tension:
1 -35 kg
Table working height:
800 - 900 mm
Elektric:230 V, 1 Ph., 50 Hz
Machine dimension:
1.400 x 650 x 1.497 mm (LxWxH)
Arch size:
650 x 500 mm (WxH)*
* Other dimension for request

 Video

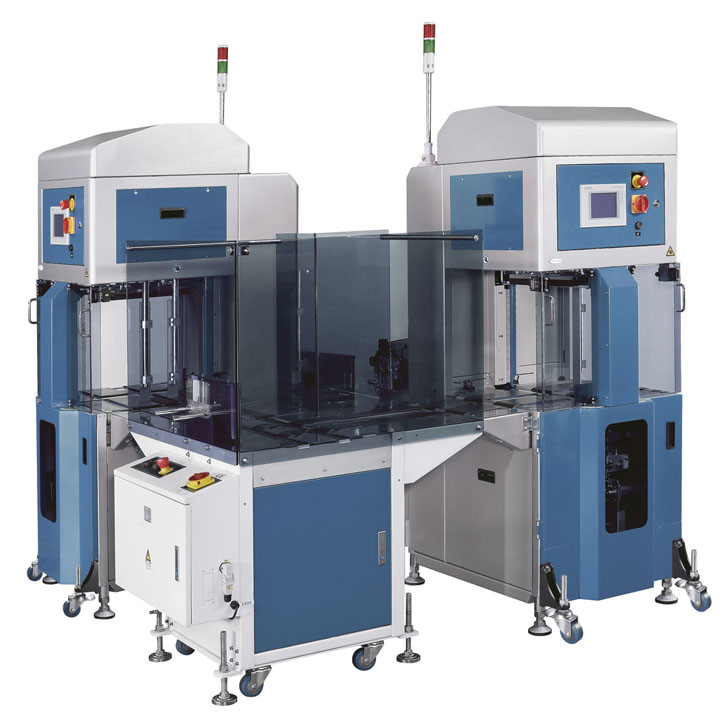

HU-702-NAD

Fully automatic strapping machine tandem version with 90° turntable

HU-702-NAD
Capacity:

25 per min.
single- or cross strap
Strap width:
5, 6, 9 mm
Strap tension:
1 - 35 kg
Table working height:
820 - 900 mm
Elektric:400 V, 3 Ph., 50 Hz
Machine dimension:
1.980 x 1.920 x 1.930 mm (LxWxH)
Arch size:
550 x 400 mm (WxH)*


* Other dimension for request

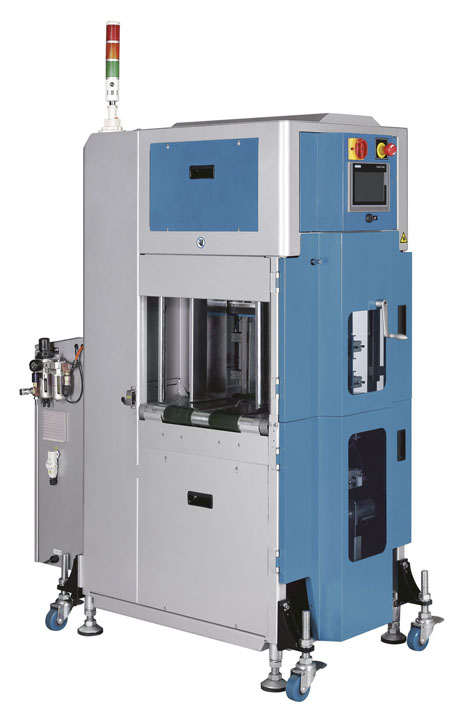

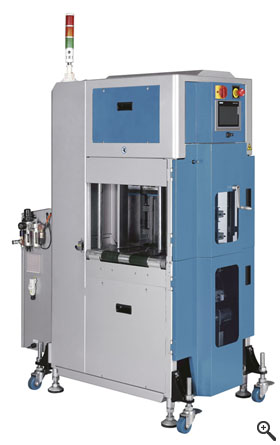

HU-702-MGZ

Fully automatic strapping machine with bundle control for print products

HU-702-MGZ
Capacity:
45 per min., single strapp
Strap width:
5, 6, 9 mm
Strap tension:
1 -32 kg
Table working height:
800 - 900 mm
Elektric:400 V, 3 Ph., 50 Hz
Machine dimension:
1.160 x 850 x 2.400 mm (LxWxH)

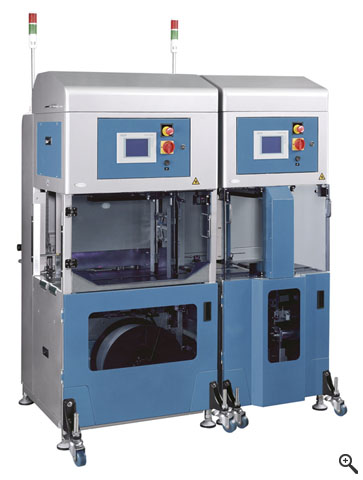

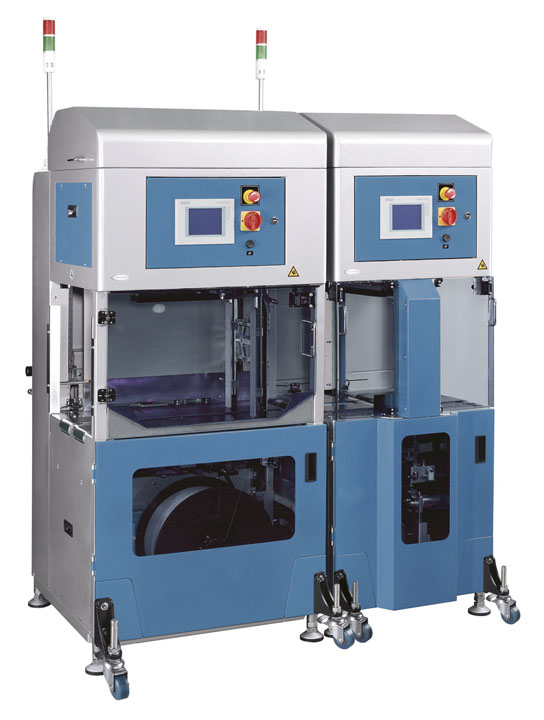

HU-702-NIL

Fully automatic strapping machine without bundle turning


HU-702-NIL
Capacity:
31 per min.
Strap width:
5, 6, 9 mm
Strap tension:
1 - 32 kg
Table working height:
800 - 900 mm
Elektric:400 V, 3 Ph., 50 Hz
Machine dimension:
1.250 x 1.520 x 2.300 mm (LxWxH)

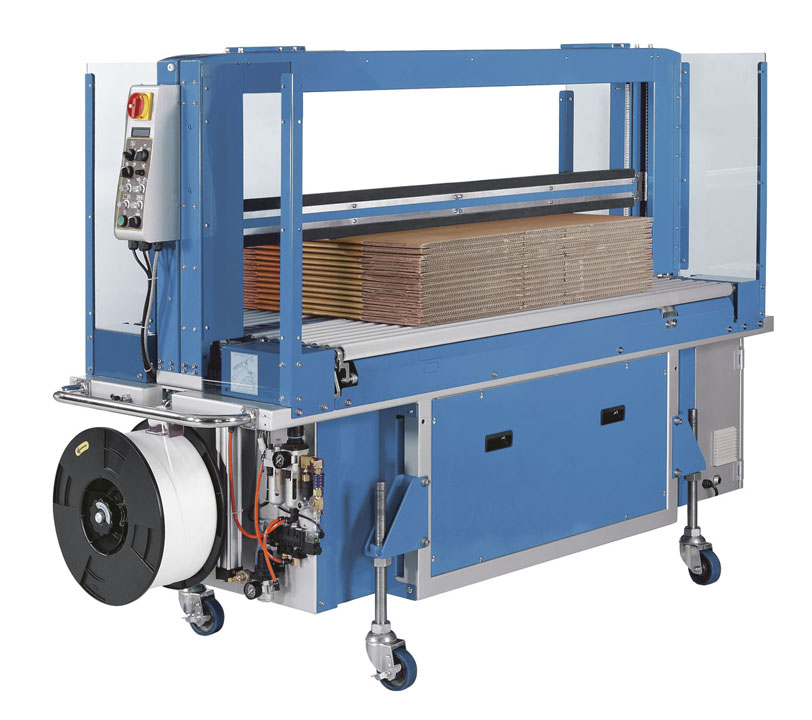

HU-702-AC

Fully automatic strapping machine for carton boxes

HU-702-AC
Capacity:
33 per min. single;
20 per min. cross
Strap width:
5, 6, 9 mm
Strap tension:
1 -32 kg
Table working height:
700 - 1.000 mm
Elektric:400 V, 3 Ph., 50 Hz
Machine dimension:
1.910 x 787 x 1.720 mm (LxWxH)
Arch size:
1.250 x 450 mm (WxH)*


* Other dimension for request
