Ball Conveyor

HUMBOLDT-Ball canveyor

Ball conveyors made of steel or  plastic rolls

Ball conveyors are suitable for all-round movement of the transported material at distribution, rotation and branching points. The conveyed must have a flat and stable floor and must not push through the selective load.
The material to be conveyed must be at least 200 mm wide - refer to the rolls arrangement per axle.

  • frame, U-profile 20 / 70 / 20x2 mm steel, galvanized
  • ball conveyor diameter 48 mm, plastic with plain bearing
  • for use in dry areas with normal temperature
  • the load capacity of the roller track is dependent on the web width, roller spacing and distance between struts


Specification
Web width:300 - 800 mm
Overall width:340 - 840 mm
Wheelbase:50 - 200 mm
Web length:
500 - 1,550 mm
Height:275 - 1,550 mm
Capacity between 2 struts per meter:
ca. 60 kg
Execution:
Plastc rolls
Option
Cornering

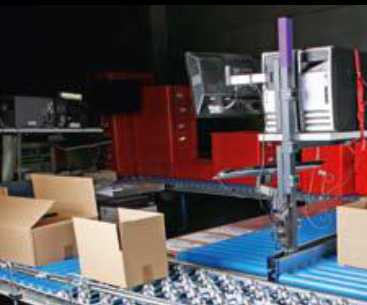

Allseiten-Röllchenbahn
Allseiten-Röllchenbahn
