Arm Wrapping Machines

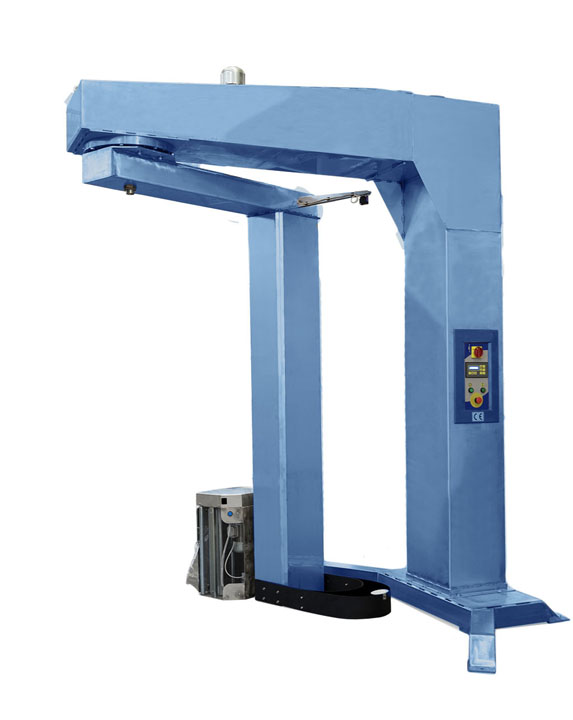

HU-4000

Semi automatic rotating arm wrapping machine

HU-4000
Film carriage:
EMB + IDP
Capacity:
25-30 pallets per hour
Max. pallet dimension:
1,200 x 1,200 x 2,200 mm (LxWxH)
Elektric:400 V, 3 Ph., 50 Hz

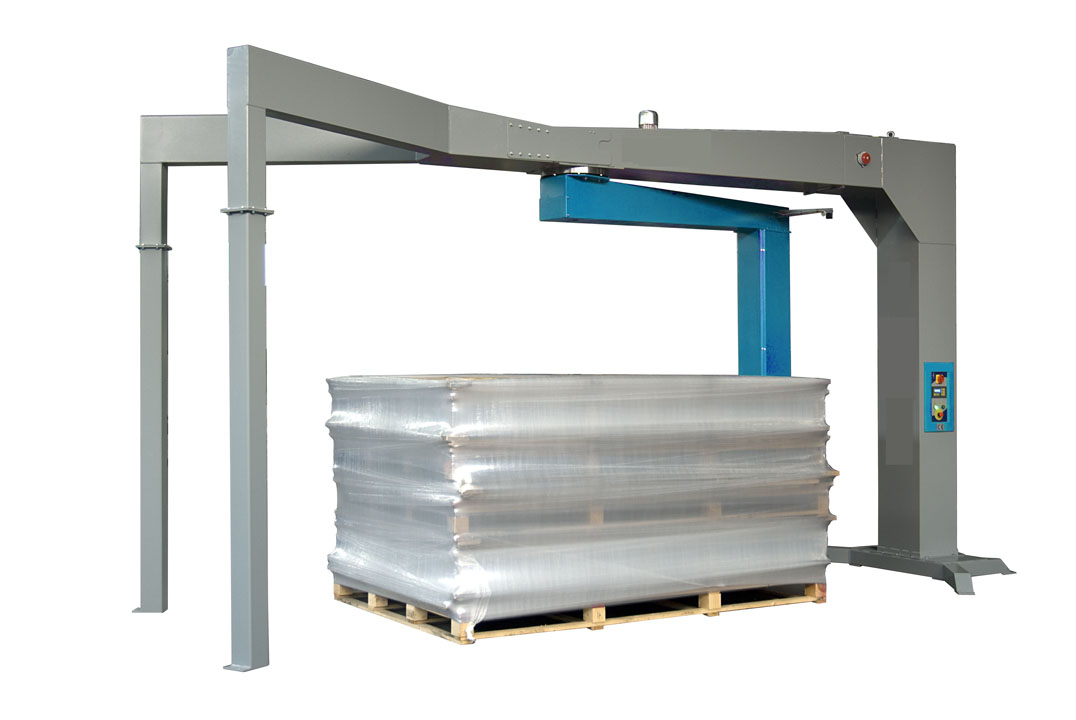

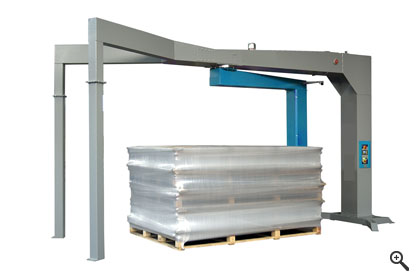

HU-4000-XL

Arm wrapping machine for large and oversized  products

HU-4000-XL
Machine Specification
Film carriage:
25-30 pallets per hour
Hubschlittengeschwindigkeit:1,4 -4 m/min
Elektric:400 V, 3 Ph., 50 Hz
Electrical power:0,92 kW
Product Specification:
Max. product dimension: (LxB):1,350 x 1,350 mm
1,480 x 1,480 mm
1,700 x 1,700 mm
1,900 x 1,900 mm
2,150 x 2,150 mm
Max. wrappimg height:2,100 mm
Option: 3,100 mm
Maximum load weight:unlimited
Film Specification:
Max. roll diameter:240 mm
Height film coil:500 mm
Inner diameter roll core:76 mm
Maximum roll weight: 18 kg

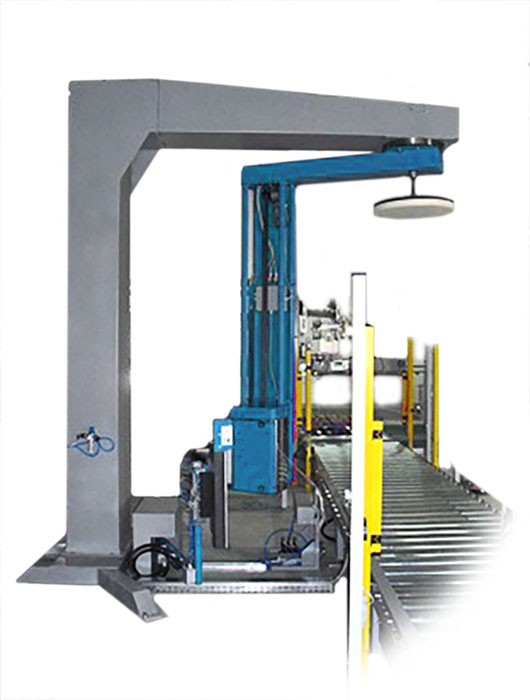

HUA-6020

Fully automatic rotating arm wrapping machine

HUA-6020
Film carriage:
IDP + EPI
Capacity:
30 Paletten pro Std.
Sting-System:Film compressed in coard last 2 wrappings, incl. heat seal film device
Max. pallet dimension:
1,400 x 1,400 x 2,500 mm (LxWxH)
Elektric:400 V, 3 Ph., 50 Hz
