Carton Erecting Machines

HUK-3000

Fully automatic carton erecting machine


HUK-3000
  • robust frame in modular construction
  • area protection through Plexiglas
  • carton transport by forced carrier
  • simple and rapid changeover to the appropriate formats
  • magazine for 100-150 cartons
  • easy and quick refilling of the magazines during production
  • erecting and folding of the lid flaps
  • secure closing the cardboard bottom through self-adhesive tape
  • Siemens control with touch screen
  • signal lamp function check

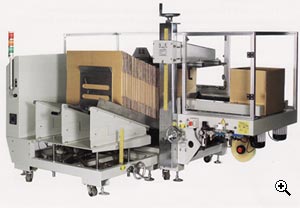

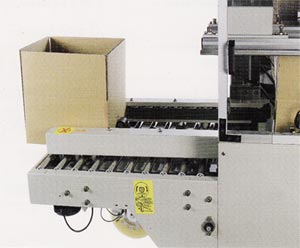

HUK-3000

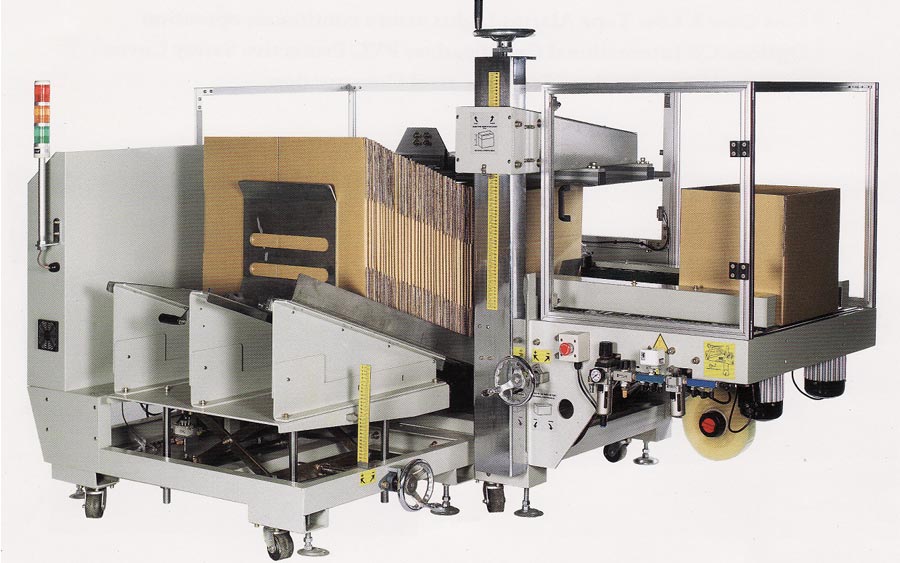

HUK-3000 mit zusätzlichem Magazin
Technical Data:

  • capacity: 6 - 7 cartons/min
  • electric: 230 V, PE, 50 Hz, 0,4 KW, 6 +/- 0,5 bar, 1/4"
  • pneumatic: 5 kg/cm²
  • magazine Size: 50 - 60 cartons (for cardboard thickness 7-10 mm)
  • weight: 470 kg

Cardboard - processing area:

Length: 365 - 700 mm
Width: 365 - 700 mm
Height: 130 - 435 mm

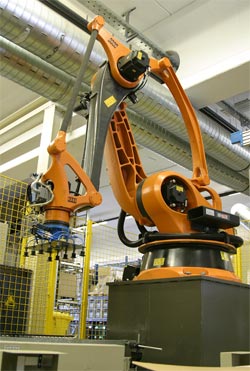

Robots for filling cartons



Roboter zum Befüllen von Kartons
The design of the robots for the automatic filling of boxes
occur respectively according to customer specifications.

Length: 365 - 700 mm
Width: 365 - 700 mm
Height: 130 - 435 mm

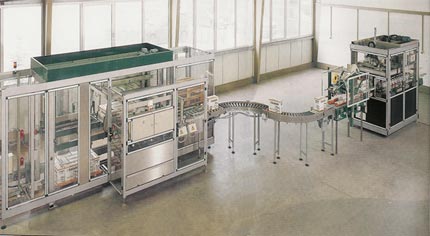

Practical example of a fully automated line



Vollautomatische Linie
Fully automatic line for erecting cartons, filling ,capping, labeling
and palletizing device

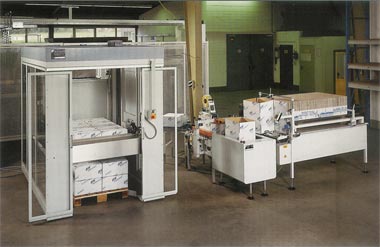

Practical example of a semi-automatic packaging machine


Halbautomatische Verpackungsanlage
Semi-automatic packaging line for manual filling by an operator

  • carton magazine
  • bottom folder
  • carton closer
  • automatic palletizing
