Robot Wrapping Machines

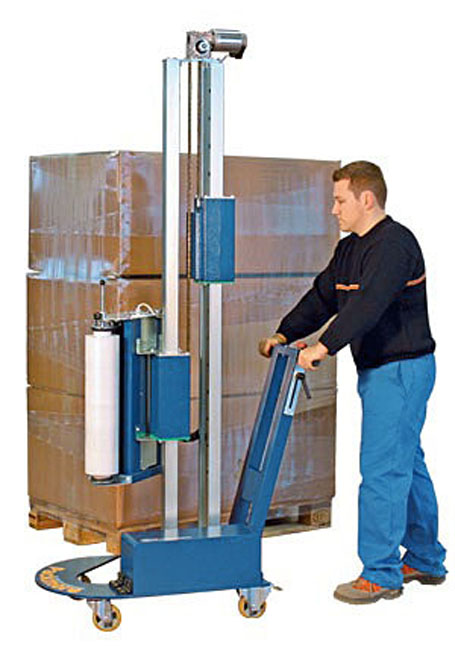

HU-ROBO-10

Semi automatic wrapping machine with battery for film carriage

HU-ROBO-10
Film carriage:
MBB
Capacity:
25-30 pallets per hour
Max. pallet dimension:
1,150 x 560 x 2,100 mm (LxWxH)
Elektric:Battery, 24 V, 17 Ah
> Download data sheet

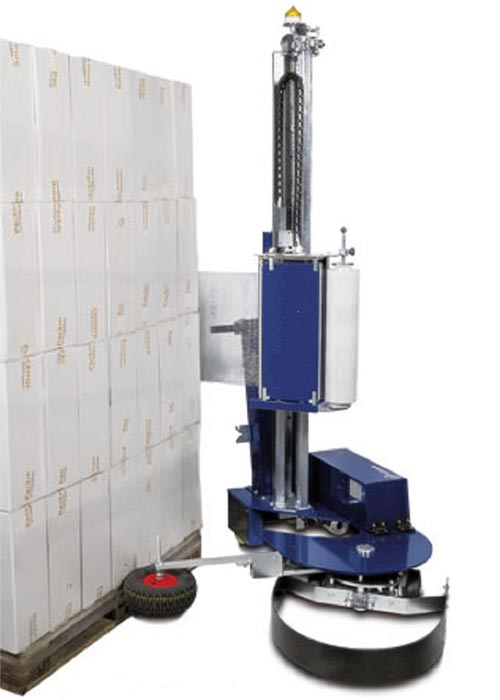

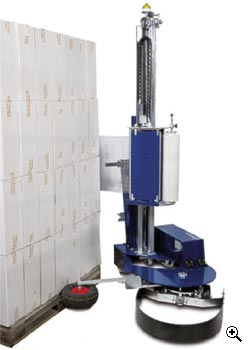

HU-ROBO-20

Automatic robot wrapping machine with battery



HU-ROBO-20
Film carriage:
EMB + VPT
Capacity:
20-25 pallets per hour
Pallet dimension:min. 750 x 750 mm,
max. unlimited
Pallet height:2.000 mm
Battery:12 V 72 A, capacity for 100 wrappings
Elektric:230 V, 1 Ph., 50 Hz
Dimension:
1.470 x 930 x 2.370 mm (LxBxH)

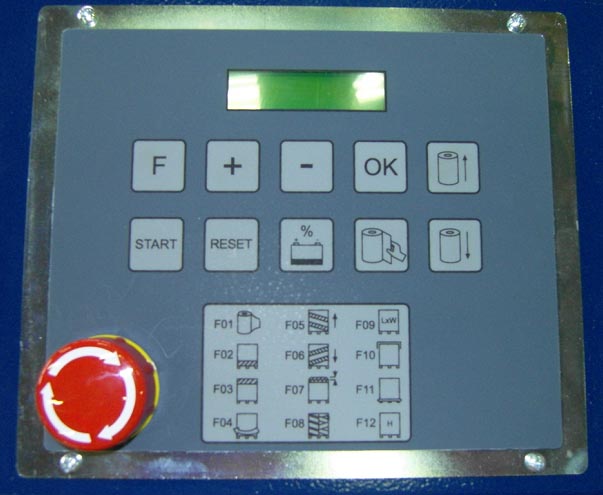

HU-ROBO-20 Bedienfeld
Operating field

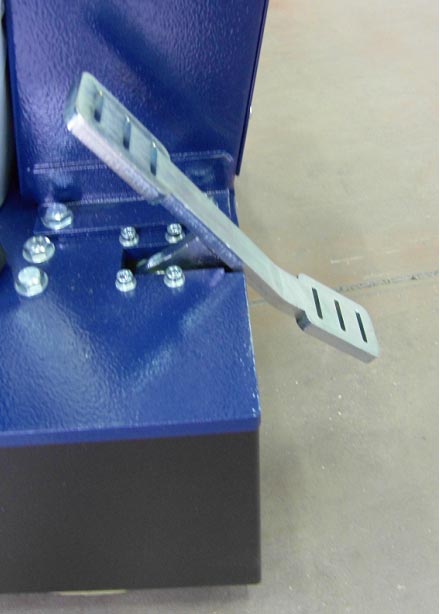

HU-ROBO-20 Fußpedal
Foot pedal

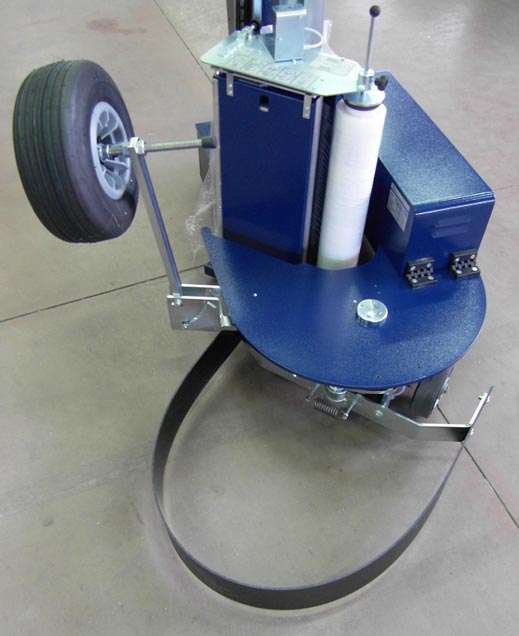

Laufrad mit Sicherungsbügel
Impeller with safety bracket

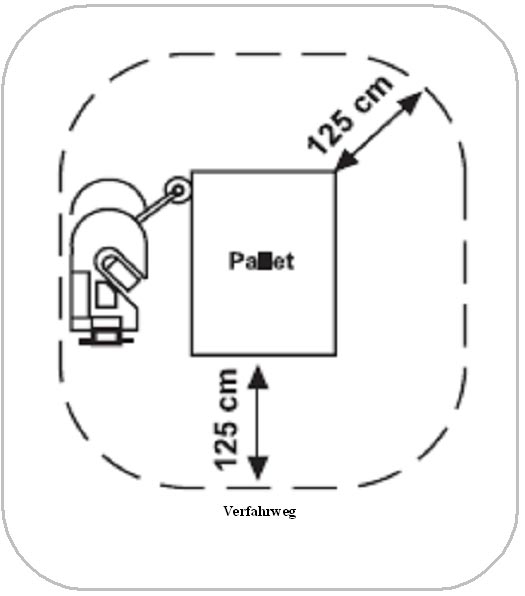

Fahrweg
Driveway

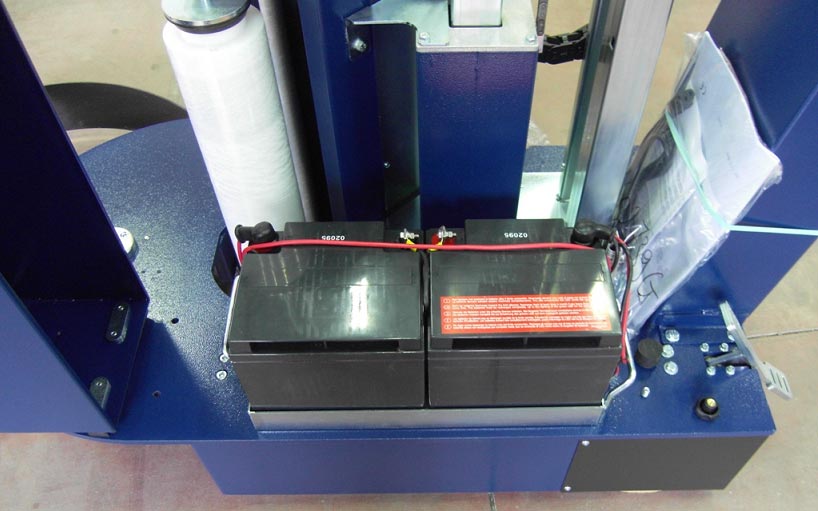

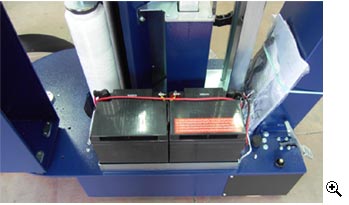

Batteriefach zum einfachen Wechsel
Battery compartment for easy exchange

Spare battery 42 Ah:


Stronger battery 80 Ah:

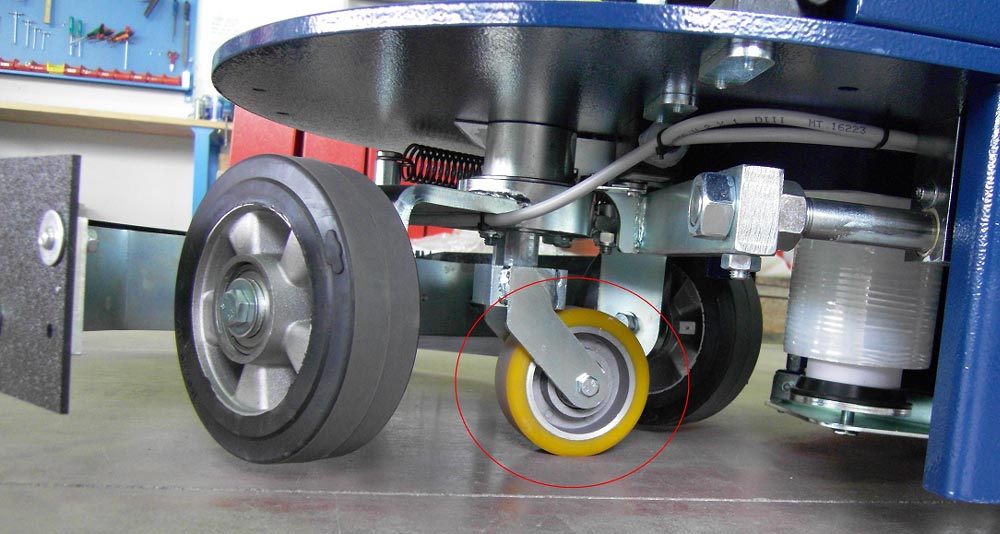

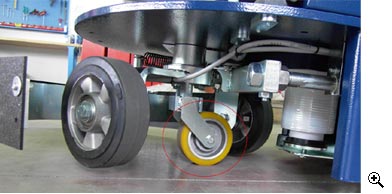

Separate Verfahrrolle
Separate castor

Machine spezification
Pallet dimension:
min. 600 x 600 mm
max. ∞ x ∞
Pallet height:
2.100 mm
Battery:
2 x 12 V; 105 A
Elektric:
230 V, 1 Ph., 50 Hz
Dimension:
690 x 1,060 x 2,100 mm (LxWxH)
Weight:
250 kg
Foil spezification
Foil width:
17 - 23 µm
Foil thickness:
1,150 x 560 x 2,100 mm (LxWxH)
Inner diameter of the roll core:
76 mm
Maximum roll weight:
17 kg

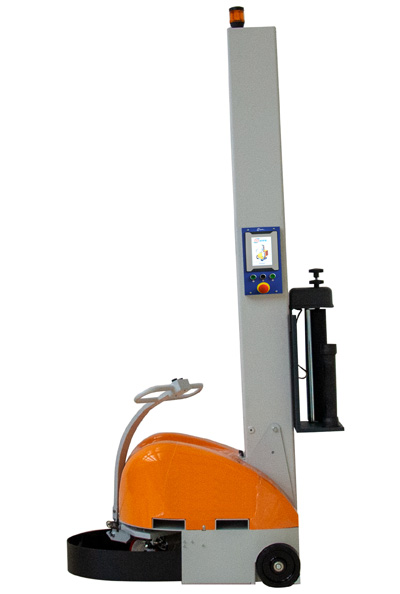

HU-ROBO-30

Automatic robot winder with battery operation

HU-ROBO-30
Additional options:

  • 2,600 mm winding height
  • 3,100 mm winding height
  • Aut. film separation
  • Tape dispenser
  • Display control
  • Number of feet and head windings separated adjustable
  • Separate castor for better things handling
  • Different driving modes
  • Winding height 2,100 mm
  • Foil lifting carriage with mechanical, electrical, or Power stretch film setting
  • Fall arrest device for lifting carriage
  • Height scanning by photoelectric barrier
  • Separately adjustable rotation speed and lifting carriage speed
  • Semi-automatic cycle
  • Illuminated lamp and acoustic signal at the beginning of the cycle
  • One battery charge is sufficient for approx. 320 pallets
  • 12 different wrapping cycles and 12 wrapping programs
  • Can be moved manually
  • Recess for easy transport by forklift
  • Execution in conformity with CE

> Download data sheet
