Manual Strapping
HU-10-M

Simple combined tool for PP- and PET-strap

HU-10-M
Strap width:
12 - 13 or 15 - 16 mm
Weight:
2.6 kg
Type of sealing:
Seal

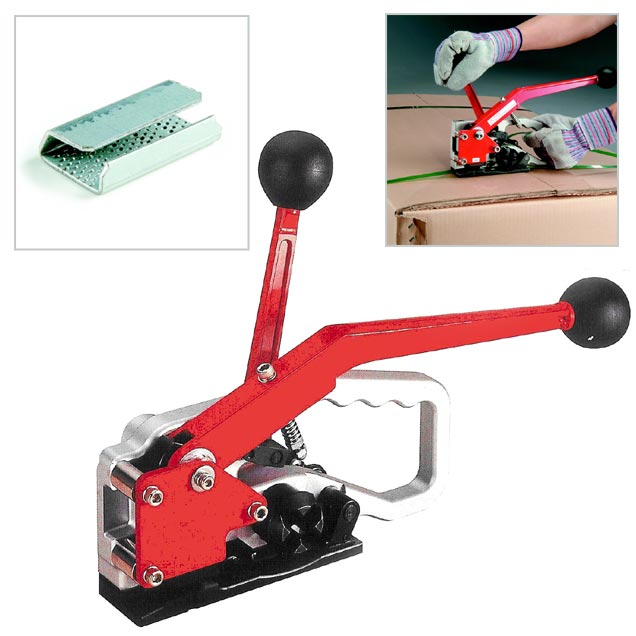

HU-15-M

Heavy duty tension and sealing tool for PP-
and PET-strap

HU-15-M
Strap width:
12 - 13 or 15 - 16 mm
Weight:
4 kg
Tension:up to 200 kg / 12 mm
up to 300 kg / 16 mm
Type of sealing:
Seal
> Download data sheet

For 12 mm strap width:


For 16 mm strap width:

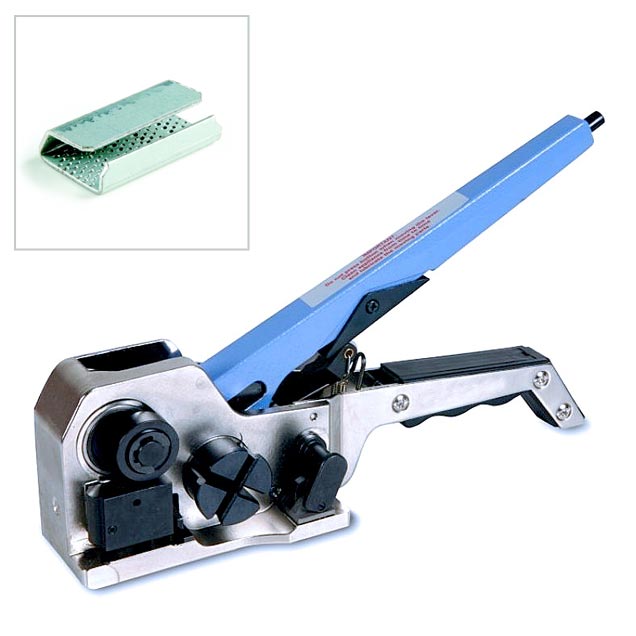

HU-20-M

One-handle tension and sealing tool for PP- and PET-strap

HU-20-M
Strap width:
12 - 13 or 15 - 16 mm
Weight:
2.3 kg / 3.4 kg
Type of sealing:
Seal

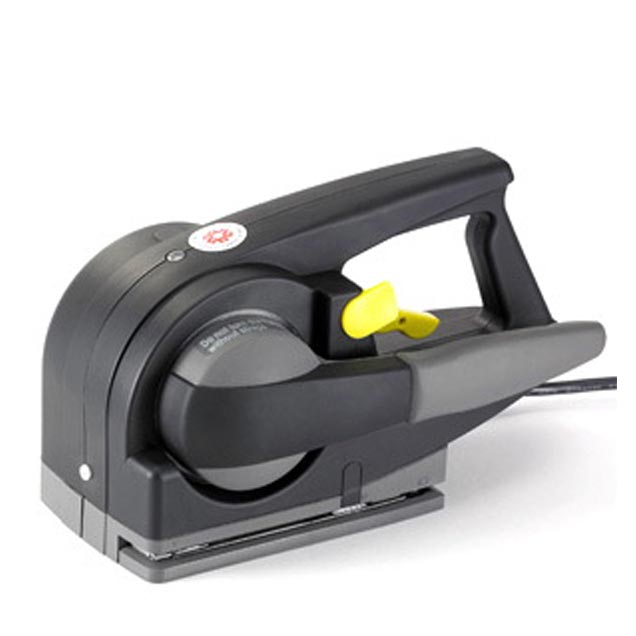

HU-25-E

Electric tension and sealing tool for PP- and PET-strap.
Manually tension and function of sealing and cutting by electric.

HU-25-E
Strap width:
9 - 15.5 mm
Weight:
4 kg
Tension:max. 100 kg
Type of sealing:Friction sealing

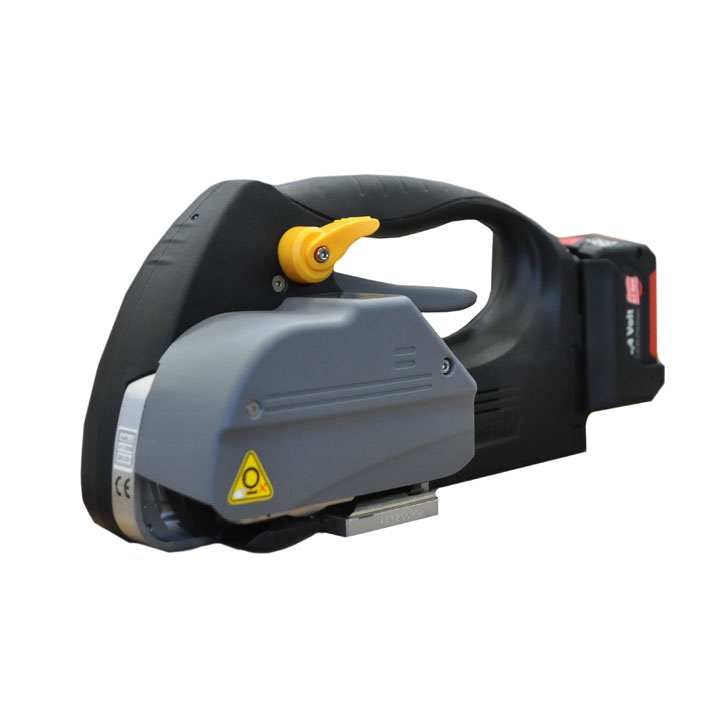

HU-31-A

One-handle battery powered tension and sealing tool with Ol-Ion-battery for PP- and PET-strap.
With auto tension sealing and cutting.

HU-31-A
Strap width:
9, 12 or 16 mm
Weight:
4.26 kg
Tension:max. 250 kg
Type of sealing:Friction sealing

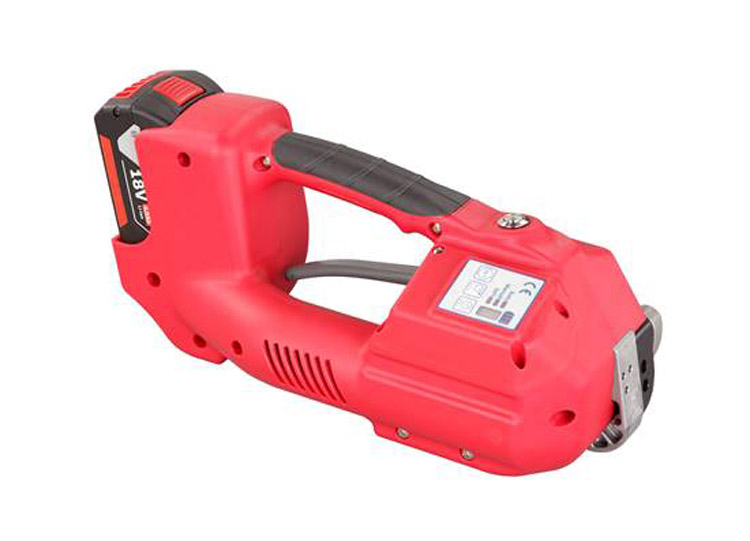

HU-32-A

One-hand rechargeable battery Clamping and sealing device with Li-ion battery for plastic strap made of polypropylene (PP) and polyester strap (PET).
The clamping is done manually, the closing and cutting of the tape by means of battery operation.
HU-32-A
Strap width:
12 or 16 mm
Weight:
4.3 kg
Tension:max. 250 kg
Type of sealing:
Friction sealing

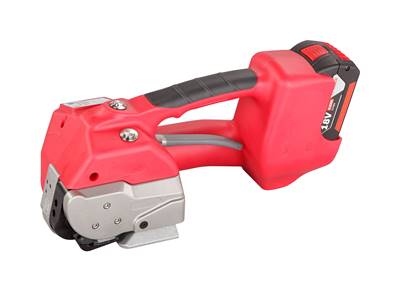

HU-32-B

One-hand rechargeable battery Clamping and sealing device with Li-ion battery for plastic strap made of polypropylene (PP) and polyester strap (PET).
The clamping is done manually, the closing and cutting of the tape by means of battery operation.
HU-32-B
Strap width:
16 or 19 mm
Weight:
4.3 kg
Tension:max. 250 kg
Type of sealing:
Friction sealing

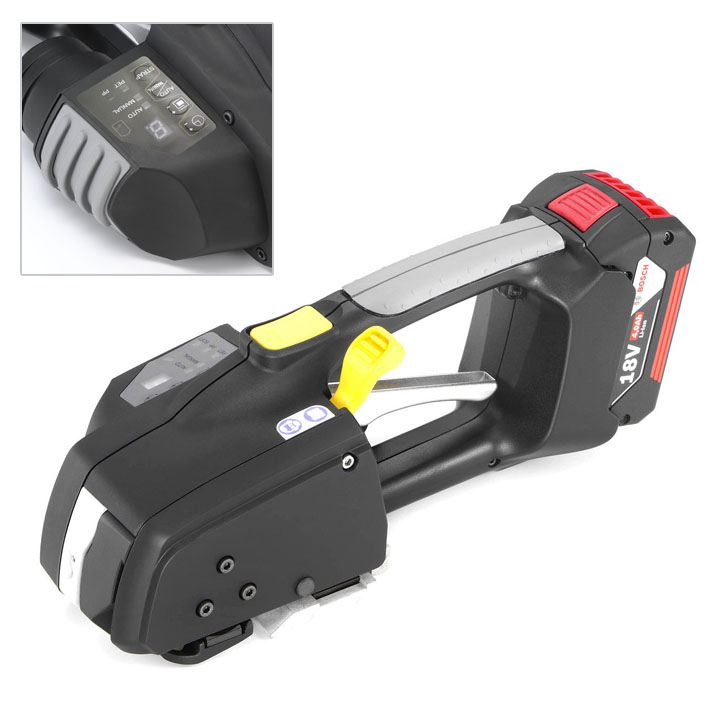

HU-37-A

Battery powerded tension and sealing tool with Li-Ion battery for PP- and PET-strap.
With auto tension sealing and cutting.
HU-37-A
Strap width:
9 - 16 mm
Weight:
3.4 kg
Tension:max. 250 kg
Type of sealing:
Friction sealing


Replacemenet battery:


BOSCH charger:


Video 1          Video 2

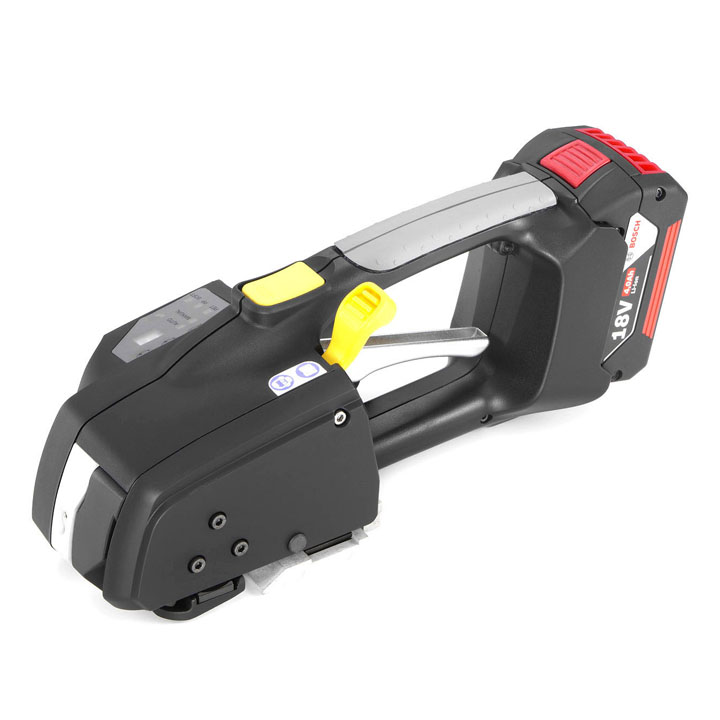

HU-38-A

Battery powerded tension and sealing tool with LI-Ion-battery for PP- and PET-strap.
With auto tension sealing and cutting.

HU-38-A
Strap width:
16 - 19 mm
Weight:
3,4 kg
Tension:bis 400 kg
Type of sealing:
Friction sealing



Replacement battery:


BOSCH charger:

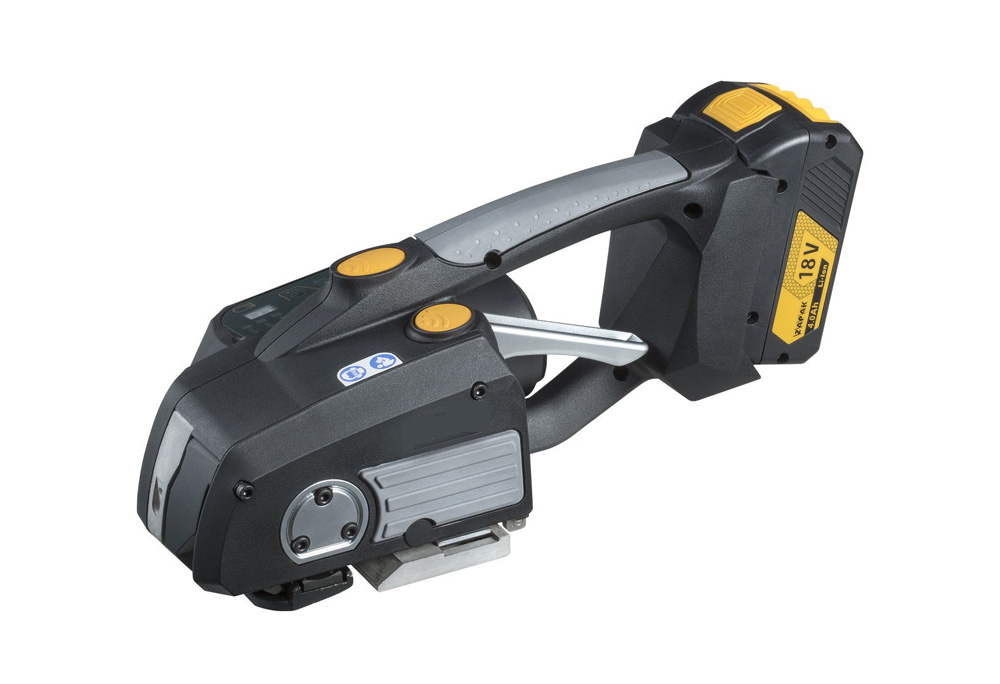

HU-39-A

Battery tensioning and locking device Model HU-39-A, for use of polypropylene and polyester tape with a smooth and embossed surface.

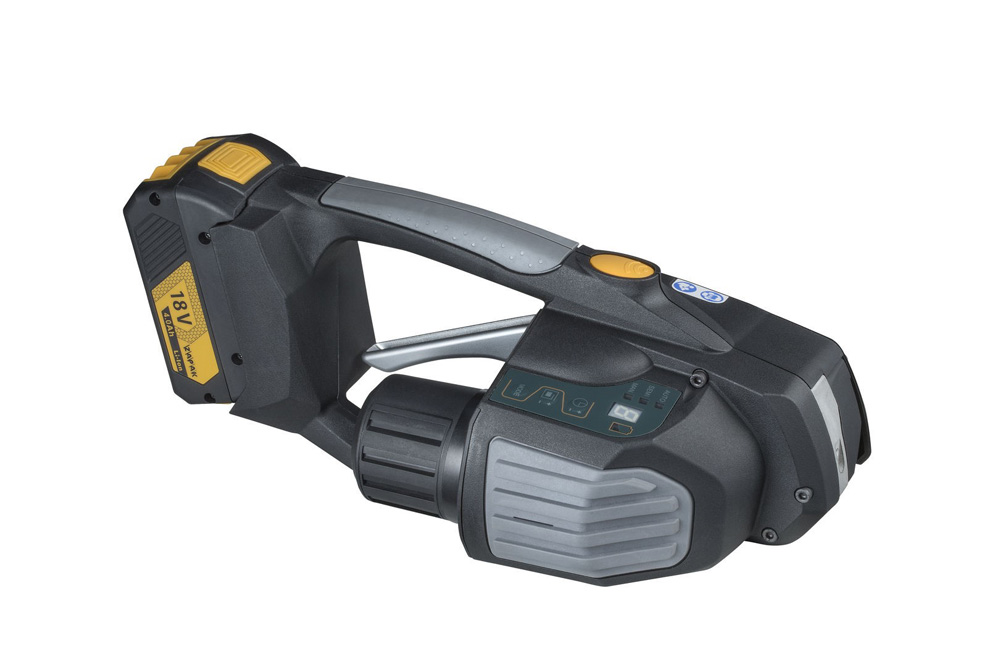

HU-40-A

Battery tensioning and locking device Model HU-40-A, with high Tape tension for use of polypropylene and polyester tape with a smooth and embossed surface.
HU-39-A
HU-40-A
Strap width:
12 and 16 mm
Tape thickness:
0.65 -1.1 mm
Clamping speed:
185 mm / sec
Strap type:
Polyester / Polypropylene
Weight:
3.6 kg, incl. battery pack
Tension:20 - 250 kg
Type of sealing:
Friction sealing vibration
Dimensions:
320 x 150 x 130 mm
Strap width:
16 and 16 mm
Tape thickness:
0.70 -1.1 mm
Clamping speed:
133 mm / sec
Strap type:
Polyester / Polypropylene
Weight:
3.6 kg, incl. battery pack
Tension:40 - 400 kg
Type of sealing:
Friction sealing vibration
Dimensions:
320 x 150 x 130 mm

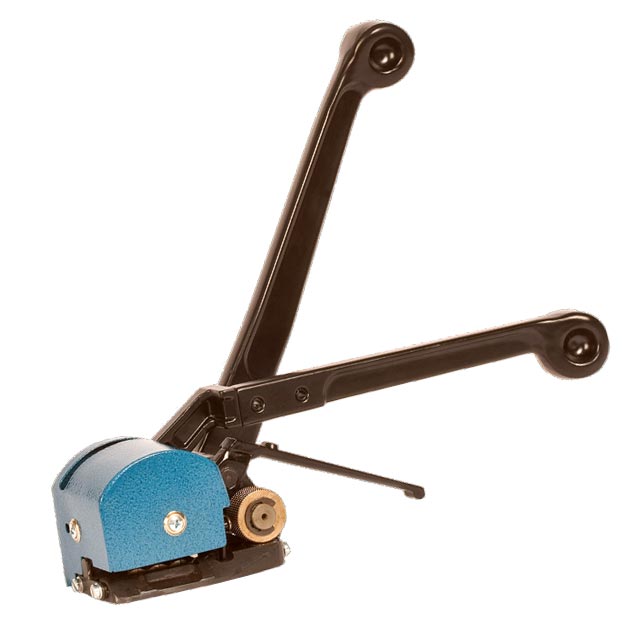

HU-50-M

Tension and sealing tool for steel strap,
sealless.

HU-50-M

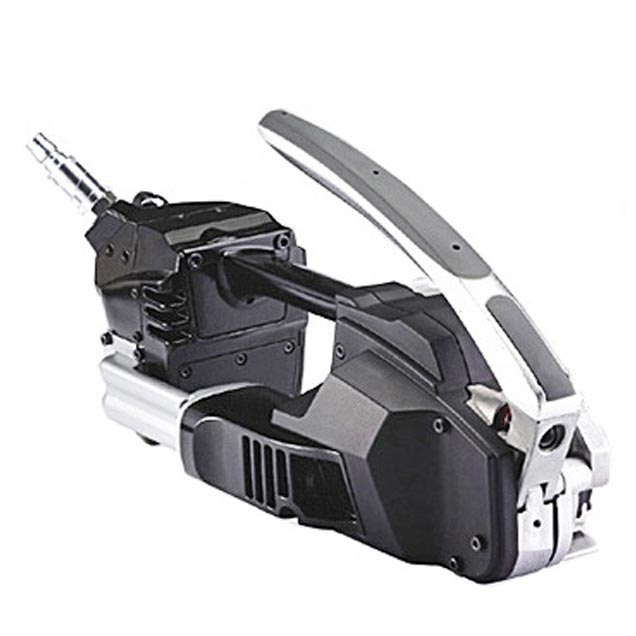

HU-40-P

Pneumatic tensioning and sealing device for plastic strapping from polyester strap (PET).
Tensioning, sealing and cutting of the strap ensued by pressing a button.

HU-40-P
Strap width:
16 -19 mm
Weight:
4.5 kg
Tension:up 350 kg
Type of sealing:
Friction sealing
Bandbreite:
13 - 20 mm
Gewicht:
3,6 kg
Verschlussart:Prägeverschluss

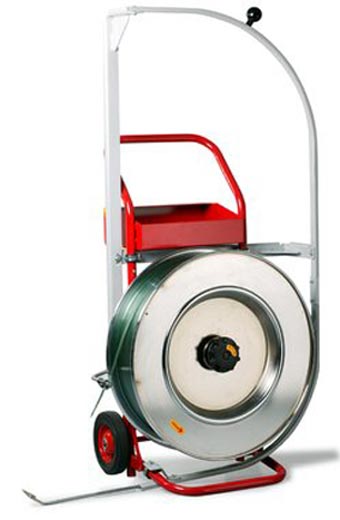

HU-1-PS with strap guide

Strap dispenser for plastic and wound steel strap.
With the strap guide the tape is simply pulled under the pallet. No more kneeing or searching under the pallet.

HU-1-PS mit Bandführung
Strap width:
10 - 19 mm
Weight:
36 kg
Core:406 mm

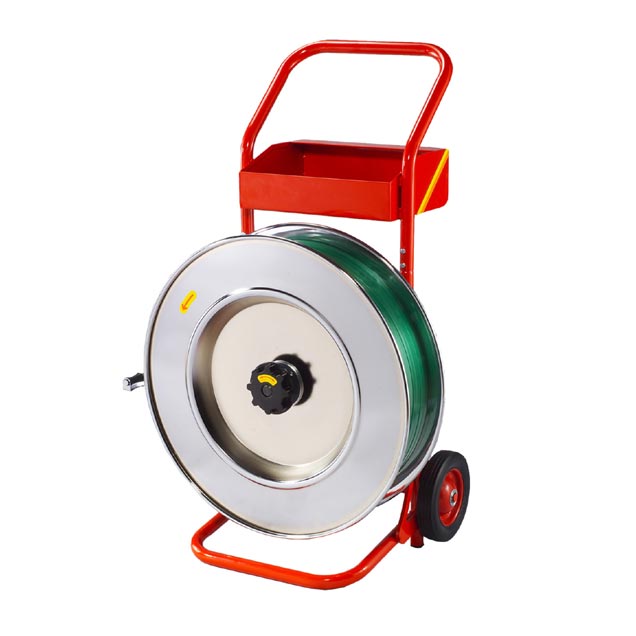

HU-1-PS

Strap dispenser for plastic and wound steel strap.

HU-1-PS
Strap width:
10 - 19 mm
Weight:
30 kg
Core:406 mm
